HV HIPOT GDPT-2000D PT Secondary Voltage Drop & Load Tester

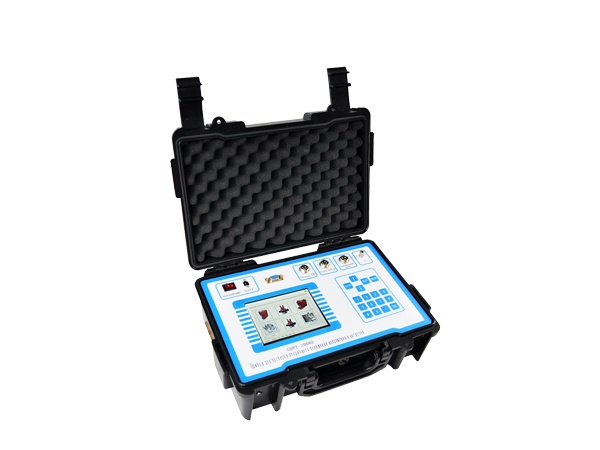

Main unit

Accuracy: Class 2

Basic error:

ΔX= K*(X*2%+Y*2%DX)

ΔY= K*(X*2%+Y*2%DY)

ΔX: in-phase component basic error allowable value;

ΔY: orthogonal component basic error allowable value;

K: instrument constant, K=1;

X: in-phase measurement of the absolute value of the dial;

Y: orthogonal measurement of the absolute value of the dial;

DX, DY: minimum dividing or quantifying value of measuring dial

Accuracy: Class 1.5 (for work voltage, work current and dial indicators)

Work voltage: 5V~120V

ΔV range: 0.01V~200V (voltage drop)/0.1mV~200V (PT or impedance)

Clamp current range: 10 mA~6A

Frequency range: 40 Hz~60 Hz, resolution 0.1 Hz

Secondary voltage drop test

Measurement range: F: 0.000%~200.0%/Δ: 0.00′~999.9′

Work voltage: 45V~120V

Secondary load test

Impedance range: 0.0000Ω~100.0Ω/0.00VA~1000VA (5A)

Admittance range: 0.000mS~100.0mS/0.00VA~1000VA (100V)

Work voltage: 45V~120V

Datasheet
