Rated output voltage: 0 - 66kV(effective value) or below.
Output frequency: 20 -300Hz.
Resonant voltage waveform: sine wave, THD ≤ 1%.
Full load working time: continuous working time 60mins.
Quality factor: max. load ≥ 20.
Frequency adjustment: fineness 0.1Hz, instability ≤ 0.01%.
Power supply: 220V or 380V single-phase.
Input voltage (V): 380
Output voltage (kV): 0-130
Capacity (kVA): 1280
Application scope:
- 10kV (300 mm² ) cable 20km
- 35kV (300 mm² ) cable 8km
- 110kV cable ≤ 2km(400 mm² )
- 35-110kV GIS

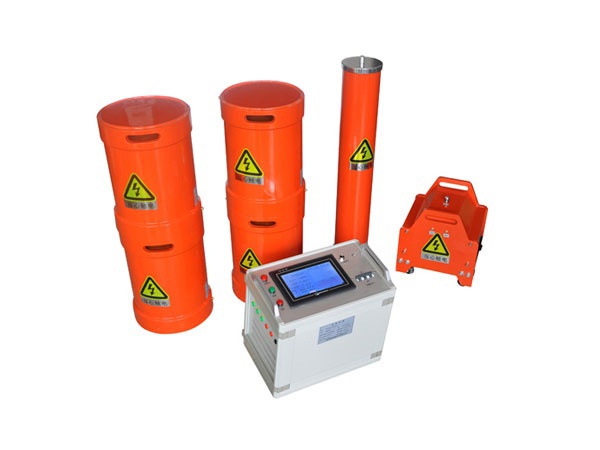

Main configurations:
• 50kW Variable frequency source 1 set
• 50kVA Exciting transformer 1 set
• Reactors 32kV/5A 8 sets
• Capacitive divider 130 kV
