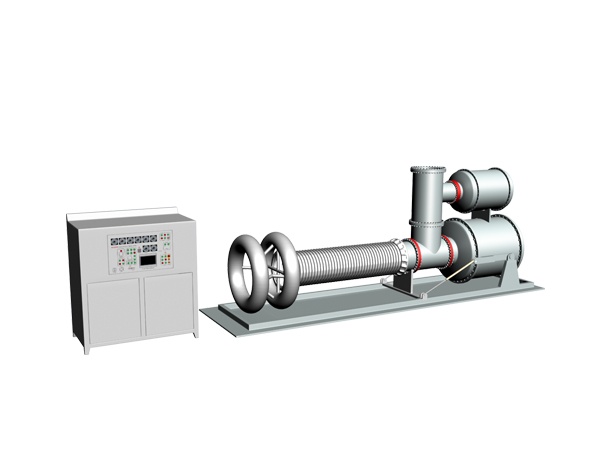

HV HIPOT GIT GIS High Voltage Test Set (50-2000kVA)

Specifications

Voltage grade : 100kV, 200kV, 250kV, 300kV, 500kV, 750kV, 1000kV;

Capacity : 50-2000kVA;

High voltage generated mode: high voltage transformer voltage boost and series resonance(power frequency, frequency conversion);

All methods of boost voltage are one level voltage boost, no need to cascade boost voltage;

Input voltage: 0.35-10kV;

Partial discharge capacity: Rated voltage 3pc (normal environment);

Impedance voltage: 5%;

Temperature rise: no more than 65k (50Hz) when rated current operates 60mins.

Accessories

Basic Accessories: High-voltage generator, High voltage coupling capacitors, High voltage divider, The console and Low-voltage compensation reactor, Partial discharge tester, Inverter power.

Optional Accessories: High voltage transformers, Three phase test switch and insulator interfaces of docking basin different manufacturers.
