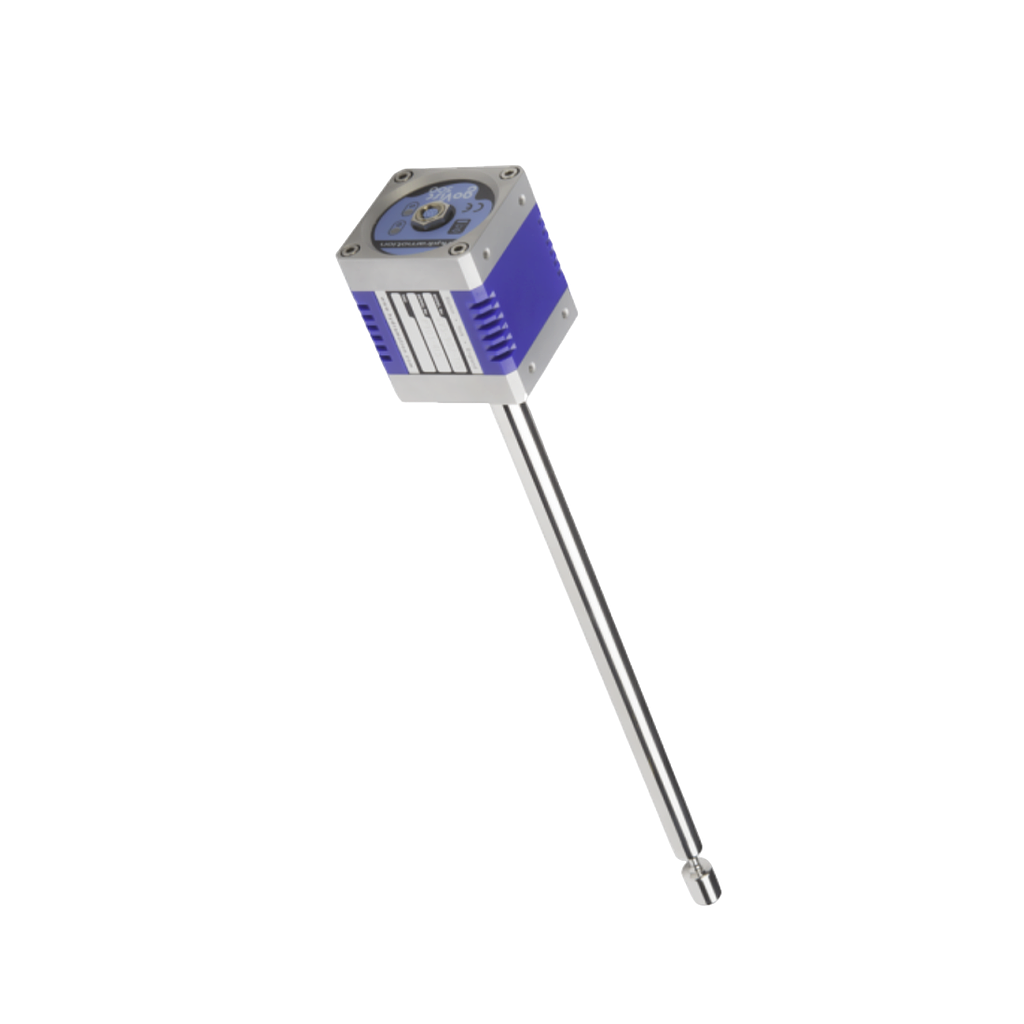

Hydramotion GOVISC Automation Viscometer Sensor (0 – 100,000cP; -20 °C - 150 °C)

PERFORMANCE

Range: 0 – 100,000cP over 5 models

Measurement Time: 1 second

Accuracy: 1% of reading or +/- 1 digit

Repeatability: 0.3% of reading or +/- 1 digit

OUTPUTS

Analog: 4-20mA configurable, representing viscosity, ref. viscosity, or temperature

Digital: RS485 ModBus Data Link to host system or PC running ViscoLink

USB: USB II Plug and Play through VP100 Interface

TEMPERATURE

Integral Thermometer: Integrated tip mounted temperature measurement

Standard Range: -20 °C to 150 °C

Extended Range: To order for greater than 150 °C *

SENSOR PROJECTION

Nominal sensor projection: 300mm

ELECTRICAL CONNECTION

Cable Length: As required – not affected by cable length.

Cable/Connector Type: Tyco M9

Power: USB powered through VP100 Interface

CONSTRUCTION

All welded, crevice-free

MATERIALS

Sensor: SS316 ( EN 1.4401)

Sensor Options: Alloy C22 (EN 2.4602)

Alloy C276 (EN 2.4819)

Special Materials: Non-standard materials to order *

SURFACE FINISH

Standard: N5 0.4 Ra

Finish Options: Fluoropolymer

Electropolished

Electroplated

Special Finish: Non-standard finish options and coatings to order *

WEIGHT: 700g

INGRESS PROTECTION

Standard: IP65

SOFTWARE

ViscoLink data viewing and logging PC software
