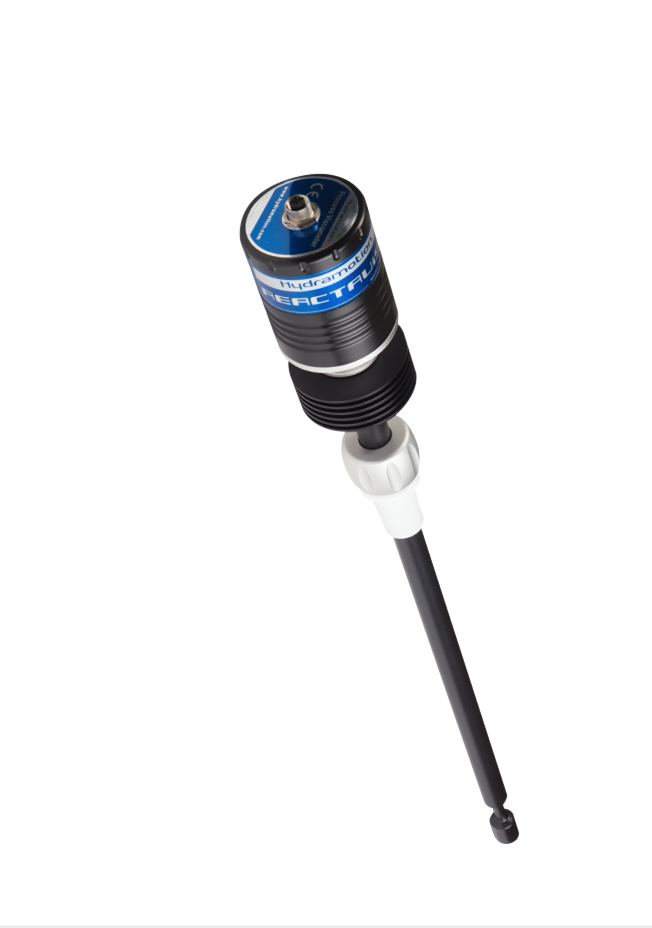

Hydramotion REACTAVISC Reaction Vessel Viscometer Sensor (0 – 500,000cP; -40 °C - 200 °C)

PERFORMANCE

Range: 0 – 500,000cP over 6 models

Measurement Time: 1 second

Accuracy: 1% of reading or +/- 1 digit

Repeatability: 0.5% of reading or +/- 1 digit

TEMPERATURE

Integral Thermometer: Integrated temperature measurement

Standard Range: -40 °C to 200 °C

Extended Range: To order for greater than 200 °C *

VESSEL CONNECTION

Type: HydraGland™ Adaptors for all tapered and other vessel fittings

Materials: PTFE and SS316

Fitting options: Special fittings and materials to order *

SENSOR PROJECTION

Nominal sensor projection: 450mm

ELECTRICAL CONNECTION

Cable Length: As required – not affected by cable length

Cable/Connector Type: Binder 4-way

Power: VP Processor powered

SAFETY CERTIFICATION

Hazardous Area: All instruments available for Ex Hazardous Area, explosive atmospheres

Ga Ex ia IIC T1…T6

CONSTRUCTION: All welded, crevice-free

MATERIALS

Sensor: SS316 ( EN 1.4401)

Sensor Options: Alloy C22 (EN 2.4602); Alloy C276 (EN 2.4819)

Special Materials: Non-standard materials to order *

SURFACE FINISH

Standard: N5 0.4 Ra

Finish Options: Fluoropolymer; Electropolished; Electroplated

Special Finish: Non-standard finish options and coatings to order *

INGRESS PROTECTION

Standard: IP67

SOFTWARE: ViscoLink data viewing and logging PC software
