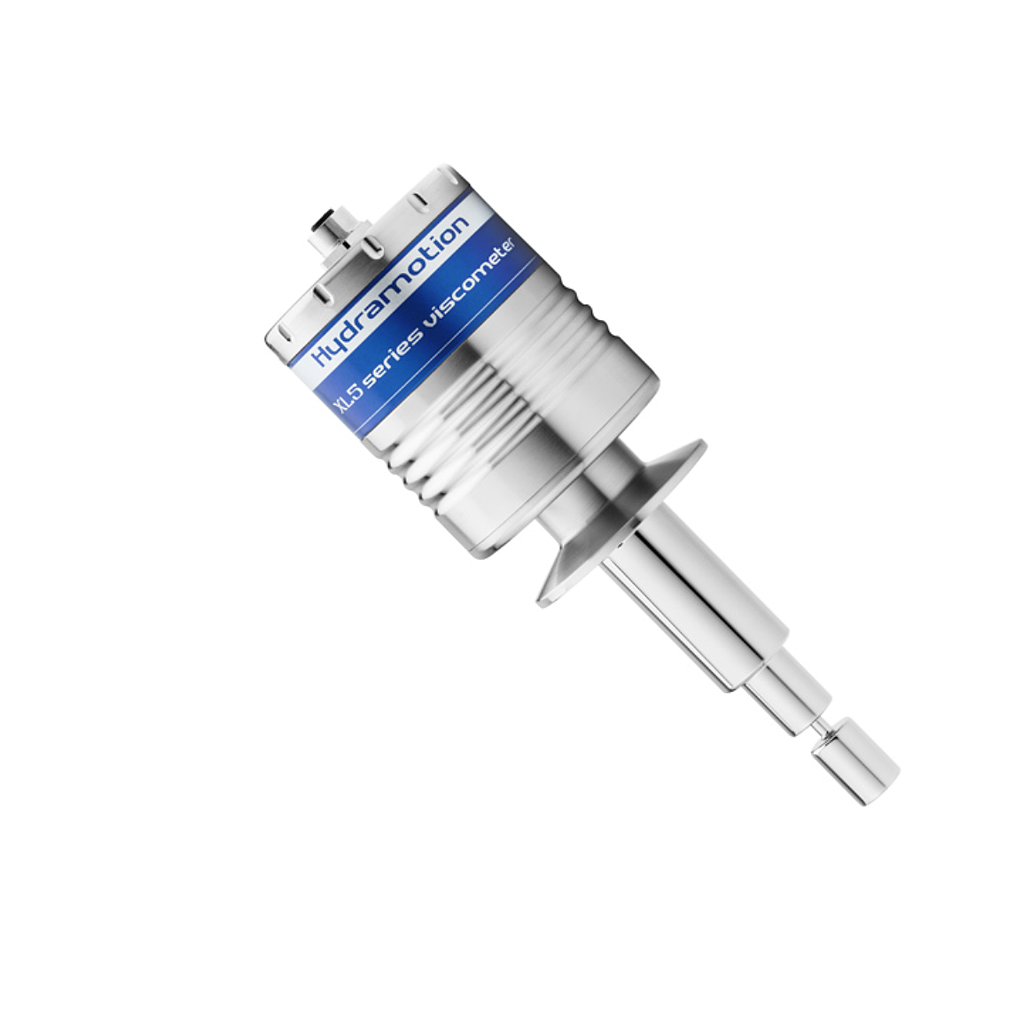

Hydramotion XL5 In-line Viscometer Sensor (0 – 1cP ~ 0 – 10^9 cP)

PERFORMANCE

Range: From 0 – 1cP to 0 – 10^9 cP over 10 models

Measurement Time: 1 second

Accuracy: 1% of reading or +/- 1 digit

Repeatability: 0.3% of reading or +/- 1 digit

TEMPERATURE

Safe Area Range: -50°C to 180°C over 2 models

Ex Range: -50°C to 130°C over 2 models

PRESSURE

Standard Range: To process fitting

Extended Range: To order for extreme pressure *

PROCESS CONNECTION

Standard Fitting: All types of process fitting

Special Fitting: Non-standard process connection to order *

ELECTRICAL CONNECTION

Cable Length: As required – not affected by cable length up to 1000m

Connector: Binder 4-way

Power: VP Processor powered

SAFETY CERTIFICATION

Hazardous Area:  All instruments available for Ex Hazardous Area, explosive atmospheres

Ga Ex ia IIC T1…T6

CONSTRUCTION

All welded, crevice-free

MATERIALS

Head: SS316 ( EN 1.4401)

Fitting: As Required

Sensor: SS316 ( EN 1.4401) and SS316L ( EN 1.4404) as standard

Sensor/Fitting Options: Alloy C22 (EN 2.4602)

Alloy C276 (EN 2.4819)

S32750 Duplex Steel (EN 1.4410)

Special Materials: Non-standard materials to order *

SURFACE FINISH

Standard: N7 0.4 Ra

Finish Options: Fluoropolymer; Electropolished; Electroplated

Special Finish: Non-standard finish options and coatings to order *

INGRESS PROTECTION

Standard: IP67

SOFTWARE

ViscoLink data viewing and logging PC software
