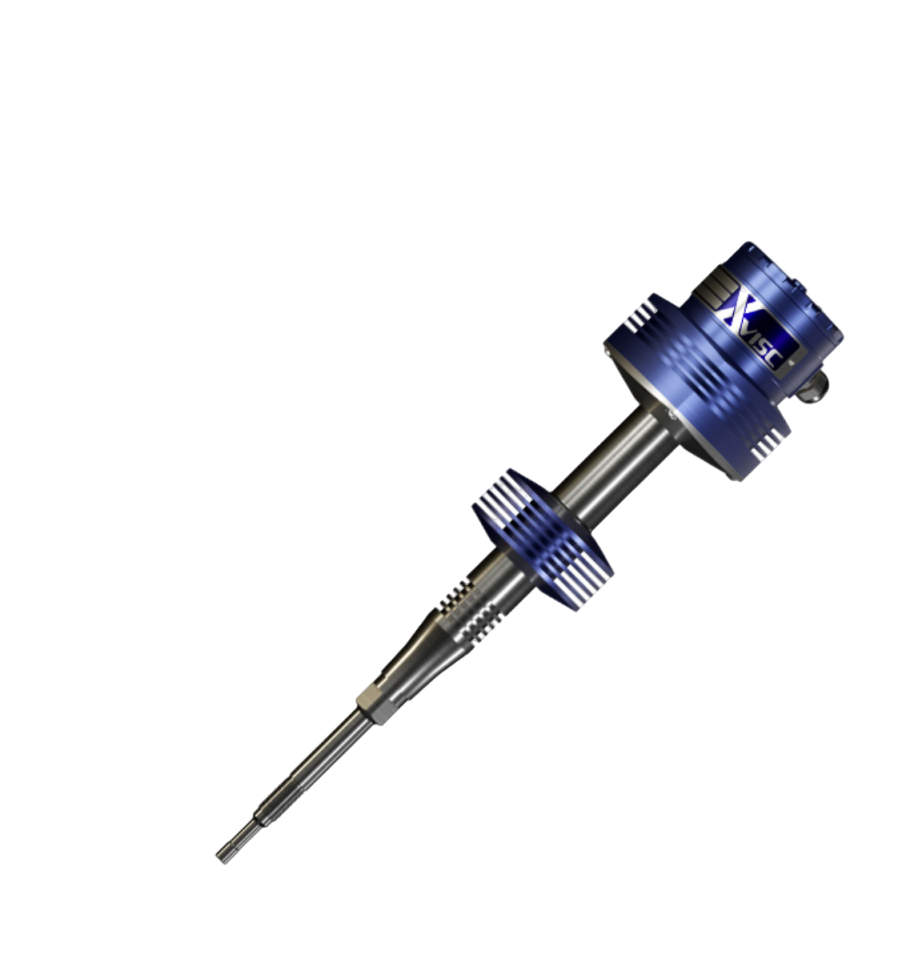

Hydramotion XVISC Food Extrusion Viscometer Sensor (0 – 10 000 000 cP; -50 °C - 300°C)

PERFORMANCE

Range: 0 – 10 000 000 cP over model range

Measurement Time: 1 second

Accuracy: 1% of reading or +/- 1 digit

Repeatability: 0.5% of reading or +/- 1 digit

TEMPERATURE

Standard Range: -50 °C to 300°C

PRESSURE

Standard Range: To process fitting

PROCESS CONNECTION

Standard Fitting: ½”-20 UNF thread fitting*

ELECTRICAL CONNECTION

Cable Length: As required – not affected by cable length up to 1000m

Cable Type: Any standard instrument cable

Power: VP Processor powered

SAFETY CERTIFICATION

Safe Area

CONSTRUCTION

All welded, crevice-free

MATERIALS

Head: Anodised aluminium 6082 (EN 3.2315)

Fitting: As Required

Sensor: SS316/L (EN 1.4401, 1.4404), alloy 2507 (EN 1.4410)

Special Materials: Non-standard materials to order *

SURFACE FINISH

Standard: N6 0.8 Ra

INGRESS PROTECTION

Standard: IP66

SOFTWARE

ViscoLink data viewing and logging PC software
