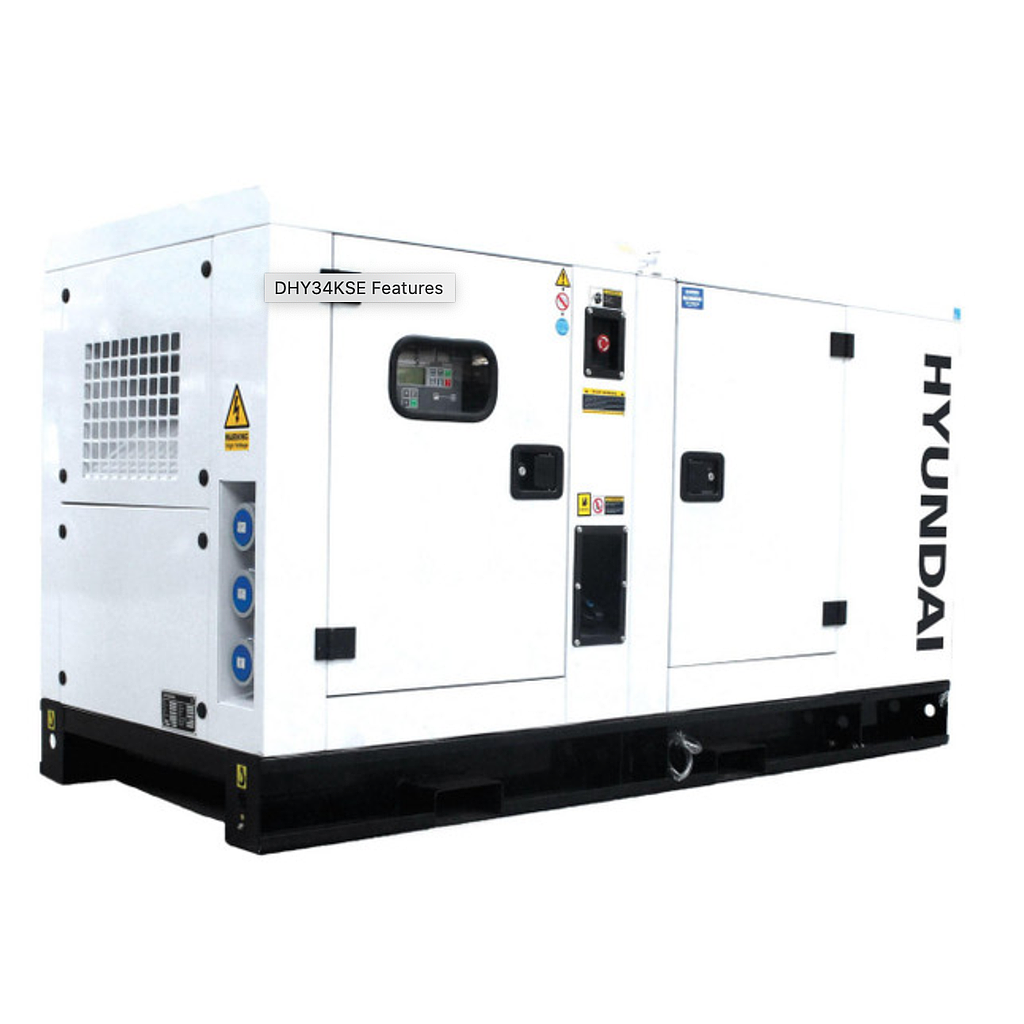

Generator
Continuous Power (KVA/KW): 30/24
Standby Power (KVA/KW): 33/26.4
Frequency (Hz): 50
Voltage (V): 230/400
Current (A): 47.48
ATS Connection Port: Yes
Fuel Tank Capacity (L): 131
Fuel Consumption at 100% Load (L/h): 8.6
Running Time at 70% Load (h): 20
Noise Level at 7m (dBA): 72
Total Weight with Enclosure (kg): 911
Dimensions with Enclosure (L×W×H) (cm): 2188×900×1280
Engine
Model: 4H3.2-G2
Power Output (KW/1500 RPM): 32
Speed (RPM): 1500
Configuration: 4-cylinder inline
Compression Ratio: 18:1
Displacement (L): 3.2
Cooling System: Water-cooled with fan
Coolant Capacity (L): 5.8
Lubricating Oil Capacity (L): 6
Lubricating Oil Consumption at 100% Load (L/h): 0.047
Battery (Ah): 1×12V-60Ah
Intake Air Flow (m³/min): 3.4
Exhaust Gas Flow (m³/min): 9.2
Exhaust Gas Temperature (℃): 550
Engine Dimensions (mm): 916×551×733
Net Weight (kg): 275
Alternator
Model: 184G
Bearing Type: Single bearing
Phase: 3-phase
Power Factor (Cosφ): 0.8
Voltage Regulation: Automatic AVR with SX460
Protection Class: IP23
TIF (Transient Interference Factor): <50
THF (Total Harmonic Factor): <2%
Insulation Class: Class H
Excitation System: Automatic
AVR Model: SX460
