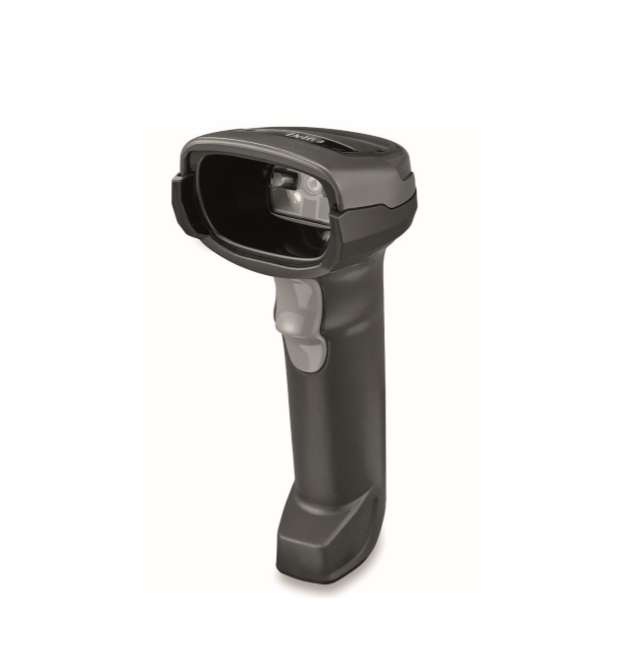

Delfi Delfiscan M81 Barcode Scanner (Bluetooth)

Applications

• Retail - Point of Sale

• Light Manufacturing

• Healthcare: in laboratories, pharmacies and in-room patient care • Access Control, Transportation and Entertainment

• Commercial Services: Postal, Banks, Public Administration, Utilities

Technical Data:

Decoding Capability:

1D / LINEAR CODES: Code 39, Code 128, Code 93, Codabar/ NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D CODES: PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

Electrical Current

Operating:250 mA (typical).

Standby/Idle: 150 mA (typical).

Environmental Ambient

Light: 0 - 107,600 lux

Drop Resistance: Withstands multiple drops at 1.5 m / 5.0 ft onto a concrete surface.

ESD Protection (Air Discharge): 8 kV

Humidity (Non-Condensing): 5 - 95%

Particulate and Water Sealing: IP42

Temperature

Operating: 0 to 50 °C / 32 to 122 °F

Storage/Transport: -40 to 70 °C / -40 to 158 °F

Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Datasheet
