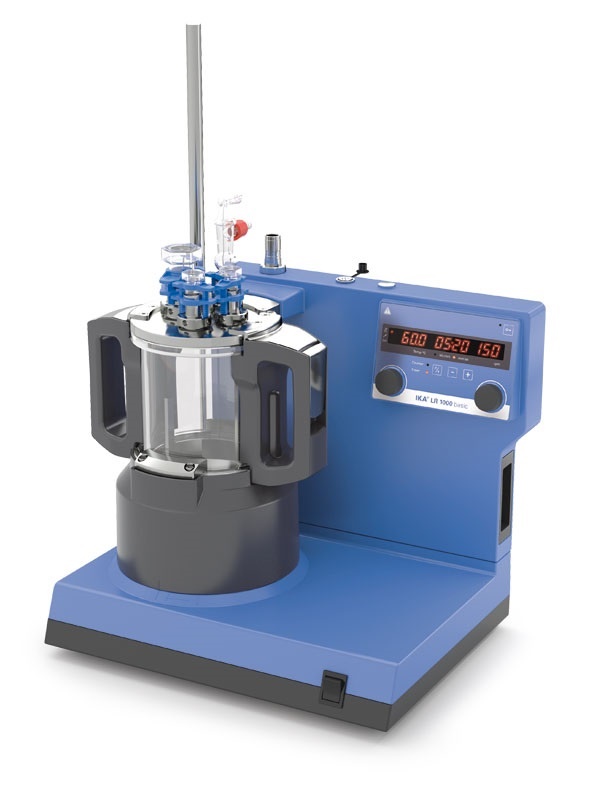

IKA LR 1000 basic Package (0008040100)

Useable volume max.: 1000 ml

Useable volume without disperser tool min.: 500 ml

Working temperature max.: 120 °C

Attainable vacuum: 25 mbar

Viscosity max.: 100000 mPas

Speed range: 10 - 150 rpm

Support rod diameter (with integrated fastening on stand): 16 mm

Material in contact with mediumAISI 316L, 1.4571, borosilicate glass 3.3, PTFE, PEEK, FKM

Reactor vessel openings (units/standard): 1/NS 29/32, 3/NS 14/23

Permissible ON time: 100 %

Temperature measurement resolution: 0.1 K

Nominal torque: 3 Nm

Heat output: 1000 W

Cooling medium permissible operating pressure: 1 bar

Speed min (adjustable): 10 rpm

Heating temperature max.: 180 °C

Adjustable safety circuit: 47 - 225 °C

Adjustable safety circuit, temperature deviation: 10 - 20 ±K

Cooling medium temperature min.: 3 °C

Set temperature resolution: 1 ±K

Heat control accuracy of medium with sensor: 0.2 ±K

Speed deviation: 5 ±rpm

Speed display: 7 segment LED

Heat control: LED

Connection for ext. temperature sensor: PT 100

Timer: yes

Timer display: 7 segment LED

Speed control: 1 RPM steps

Type of cooling: flow

Temperature display: yes

Safety temperature display: LED

Display for operation with ext. sensor: yes

Safety cutout: yes

Dimensions (W x H x D): 443 x 360 x 295 mm

Weight: 16 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

RS 232 interface: yes

USB interface: yes

Voltage: 230 / 115 V

Frequency: 50/60 Hz

Power input: 1200 W

Datasheet
