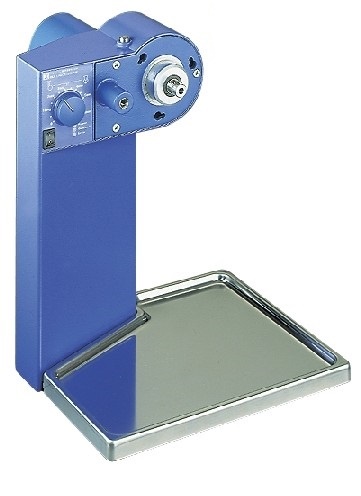

IKA MF 10 basic Microfine grinder drive (0002836000)

Process type: inline

Operating principle: cutting/impact

Motor rating input: 1000 W

Motor rating output: 500 W

Speed range: 3000 - 6500 rpm

Power-ON time: 120 min

Power-OFF time: 30 min

Mill feed can be cooled in milling chamber with dry ice: yes

Dimensions (W x H x D): 320 x 380 x 300 mm

Weight: 9.7 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity80 %

Protection class according to DIN EN 60529: IP 22

Voltage: 230 / 115 V

Frequency: 50/60 Hz

Power input: 1000 W
