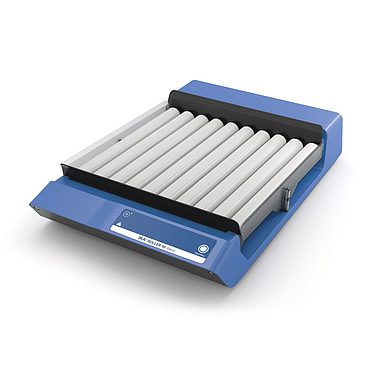

IKA ROLLER 10 basic (0004012000) shakers

Type of movement: rolling

Permissible ON time: 100 %

Speed min.: 0 rpm

Speed fix: 30 rpm

Speed display: none

Speed control: 1 RPM steps

Timer display: none

Operating mode: continuous operation

Rolls, number: 10

Rolls, Ø: 32 mm

Rolls, length: 327 mm

Working area length: 350 mm

Rolls, luffing angle fixed: 3 °

Rolls, max stroke at roll end: 16 mm

Rolls, changeable, removable: yes

Dimensions (W x H x D): 380 x 115 x 545 mm

Weight: 6 kg

Permissible ambient temperature: 4 - 50 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

Voltage: 100 - 240 V

Frequency: 50/60 Hz

Power input: 24 W

DC Voltage: 24 V=

Current consumption: 1000 mA

Datasheet
