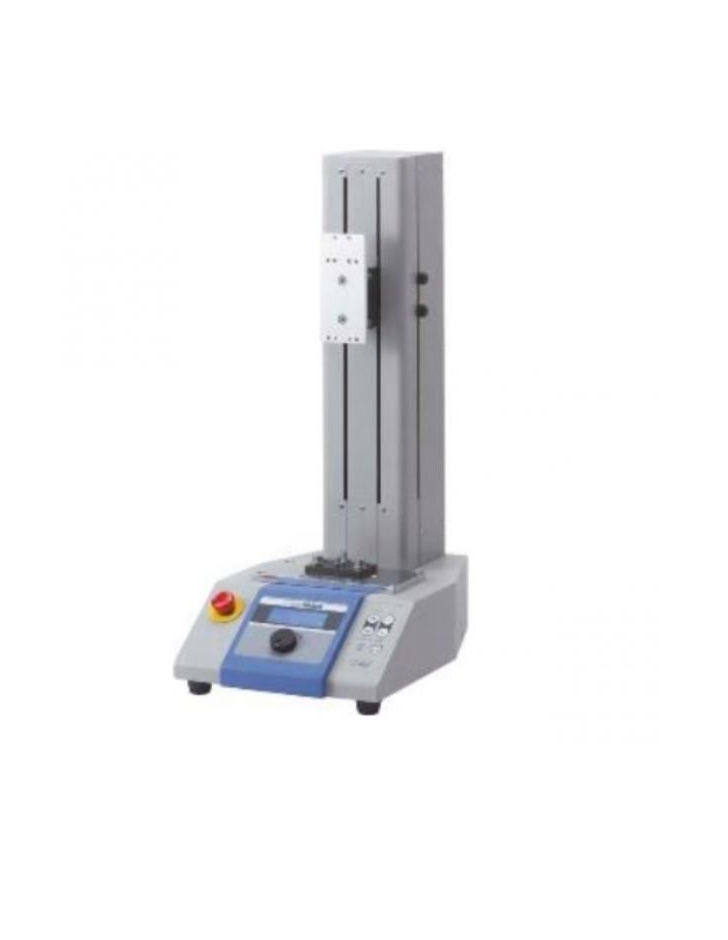

IMADA MX2-1000N Force Test Stand (1000N)

Capacity: 1000N

Speed:

Digital 10 to 300mm/min

[10 – 20mm/min: by 0.5mm/min] [20 – 100mm/min: by 5mm/min] [100 – 300mm/min: by 10mm/min]

Max. Sample Height: Approx. 300mm

Rigidity:

[Standard models] less than 0.5mm,

[Long stroke (optional)] less than 1.0mm

Stroke Limit: Controllable with upper and lower knob

Measuring Modes: Manual / Jog / Cycle mode

Functions:

Counter (number of tests to repeat): Max. 65535 times

Timer (pausing time): Up to 99 min 59 sec 9 (by 0.1 sec)

Control: Emergency stop, force control (*2), overload prevention (*2, *3)

Operating temperature humidity: 0 to +40 degree Celsius, 35 to 70% (avoid condensation)

Voltage: AC100 to 240V, 50/60Hz (Select from 100, 120 and 230V. Accessories are provided accordingly.)

Power Consumption: 50W

Weight: Approx. 19kg

Accessories: Operation manual, power cable, spare fuse, tools GF-2 (Grip mounting adaptor), mounting plate for high capacity force gauge
