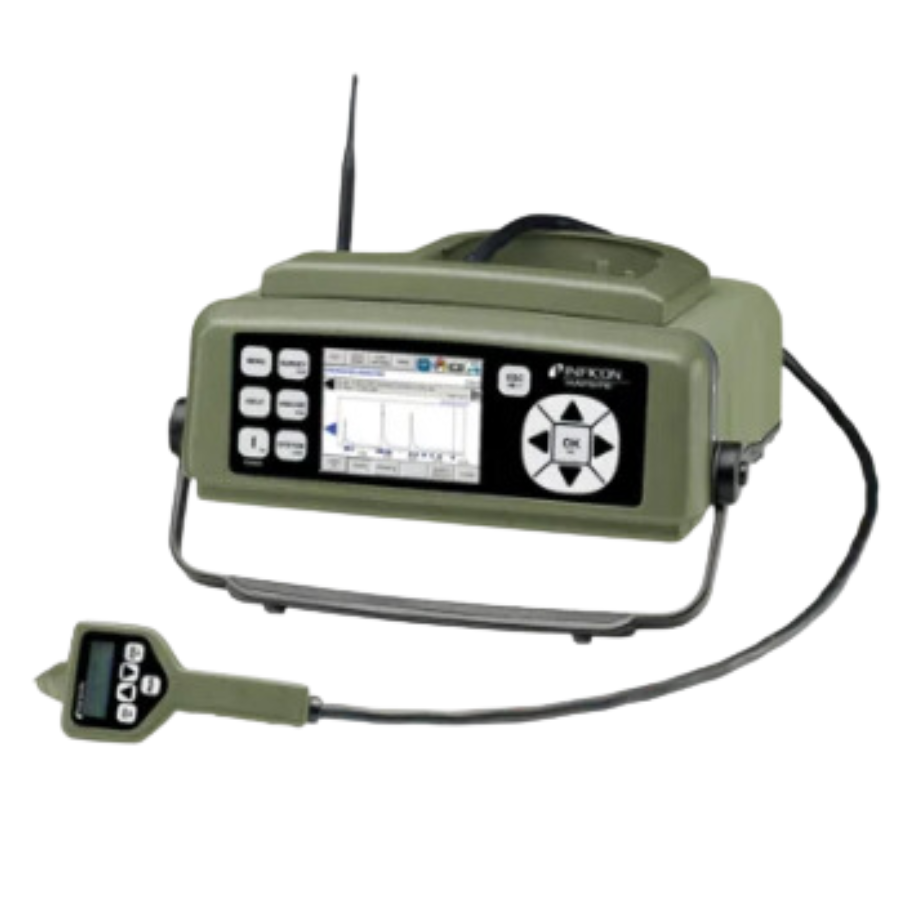

INFICON HAPSITE ER Mass Spectrometer (GC/MS)

Operating temperature: 5 – 45°C

L x W x H: 46 x 43 x 18 cm (18 x 17 x 7 in.)

Weight: Approximately 19 kg (42 lb.) with battery

Power supply: Rechargeable NiMH battery pack or AC converter

Battery life: 2 – 3 hrs

Power requirement: 24 V (dc), 30 watts at normal operating conditions

Hard drive: 16 GB internal storage

Flash drive: USB

Display: 6.5 in. VGA color display with touch screen

Sample introduction: Air probe (included) or optional accessory

Carrier gas: Nitrogen

Data system: Intel® Pentium® processor

Communication: 802.11G wireless or direct Ethernet connection

Data analysis: AMDIS Mass Spectral Libraries, NIOSH, (NIST on optional laptop)

Sample type: VOCs and select SVOCs

Detection limit: PPT for most analytes

MASS SPECTROMETER

Mass range: 41 – 300 AMU (1 – 300 AMU using SIM)

Scan rate: 1000 AMU/sec @ 10 points per AMU

Ionization mode: 70 eV Electron Impact

Detector: Electron multiplier

Vacuum system: Non-evaporative getter (NEG) pump

Dynamic range: 7 decades

GAS CHROMATOGRAPH

GC column: 15 M, Rtx-1MS, 0.25 mm i.d., 1.0 um df (included)

Temperature range: 45 – 200°C

HAPSITE ER is the only person-portable Gas Chromatograph/Mass Spectrometer (GC/MS) that requires minimal training to deliver qualitative.
