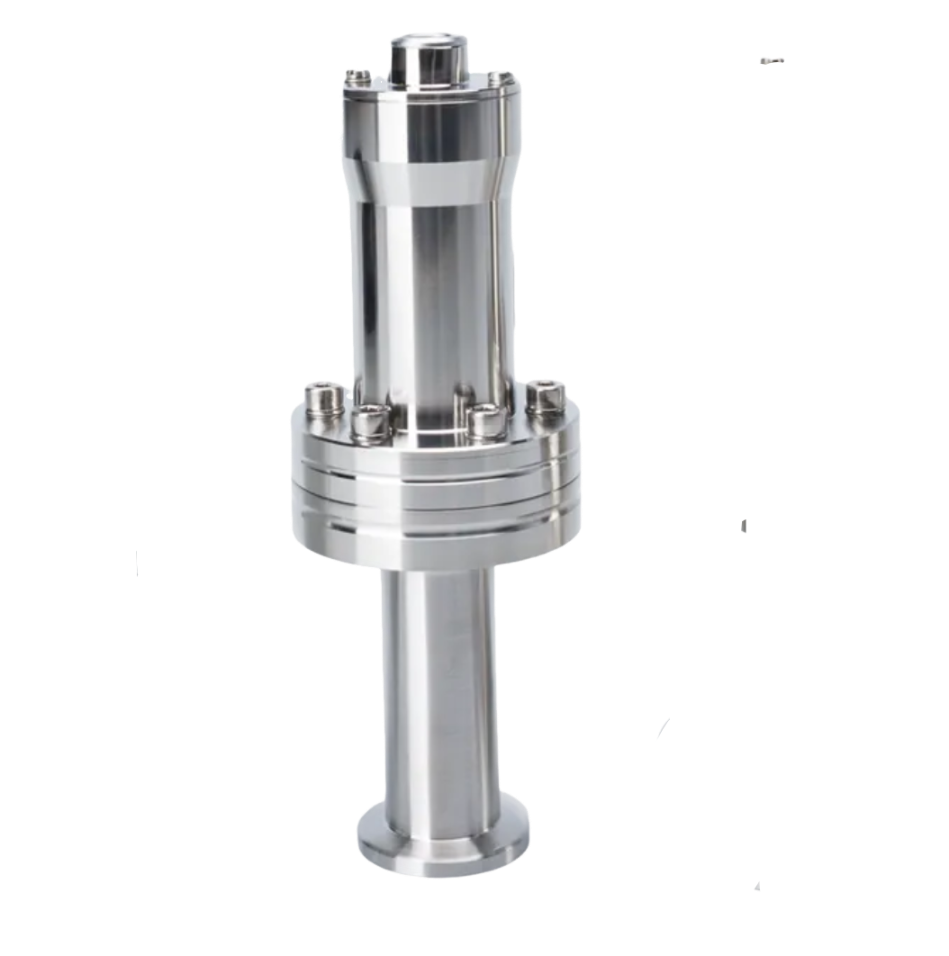

Measurement system: Pirani
Display range (air, O2, CO, N2): 8 × 10^-4 … 1000 mbar
Measurement range (air, O2, CO, N2): 1 × 10^-2 … 100 mbar
Accuracy (N2) in the range of ≥ 100 mbar: up to factor 2 of reading
Accuracy (N2) at room temperature and cable length <20 m: ~±10% of reading in the range of 1 × 10^-2 ... 100 mbar
Repeatability (N2): ~±2% of reading in the range of 1 × 10^-2 ... 100 mbar
Mounting orientation: any
Ambient, in operation with standard cable: 0 … +80 °C
Ambient, in operation with high temperature cable: 0 … +120 °C
Bake-out: 250 °C
Storage: –40 … +80 °C
Relative humidity: ≤80% at temperatures ≤+31 °C, decreasing to 50% at +40 °C
Radiation resistance: 1 × 10^6 Gy
Use: indoors only, altitudes up to 2000 m
Maximum cable length: depending on measurement board
Overpressure: ≤9 bar (limited inert gases)
Protection category: IP 40
Materials exposed to vacuum:
Feedthrough: Al2O3
Internal seal: Nimonic 90, AI
Filament / holder: Ni/Ni
Chamber wall: Stainless Steel EN 1.4435, EN 1.4306
Weight: 1.2kg
