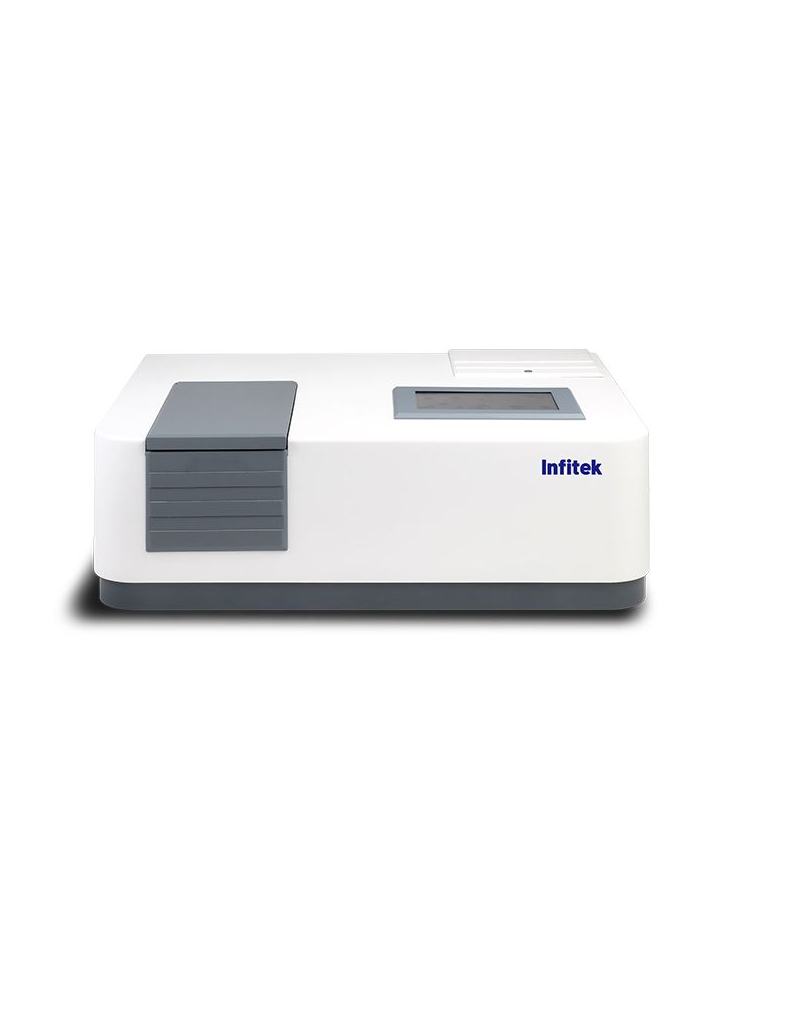

Infitek SP-LUV7600 UV VIS Spectrophotometer (190–1100 nm)

Optical System: Double-beam system

Monochromator System: Czerny-Turner monochromator

Wavelength Range: 190–1100 nm

Wavelength Accuracy: ±0.3 nm

Wavelength Reproducibility: ≤ 0.1 nm

Spectral Bandwidth: 0.5–6.0 nm

Photometric Accuracy: ±0.002 Abs (0–0.5 Abs); ±0.004 Abs (0.5–1.0 Abs); ±0.3%T (0–100%T)

Photometric Reproducibility: ≤ 0.001 Abs (0–0.5 Abs); ≤ 0.002 Abs (0.5–1.0 Abs); ≤ 0.1%T (0–100%T)

Photometric Range: -0.00–200.0 (%T); -4.0–4.0 (A)

Stray Light: ≤ 0.03%T (220 nm, NaI; 360 nm, NaNO₂)

Baseline Flatness: ±0.0008 A

Baseline Stability: ≤ 0.0005 Abs/h

Noise: ≤ 0.1%T (100%T); ≤ 0.05%T (0%T); ≤ ±0.0005 A/h (500 nm, 0 Abs, 2 nm bandwidth)

Baseline Dark Noise: ±0.1%T

Scanning Speed: High / Medium / Low / Very Low

Wavelength Scan Interval: 0.05 / 0.1 / 0.2 / 0.5 / 1 / 2 nm

Grating: 1200 lines/mm

Detector: Photocell

Display: 7-inch large-screen color touch LCD

Light Source: Hamamatsu long-life deuterium lamp and long-life tungsten halogen lamp

Photometric Mode: Transmittance (T) / Absorbance (A) / Energy

Output: USB-A / USB-B

Power Supply: AC 90–250 V, 50/60 Hz

Instrument Dimensions (W × D × H): 600 × 470 × 220 mm
