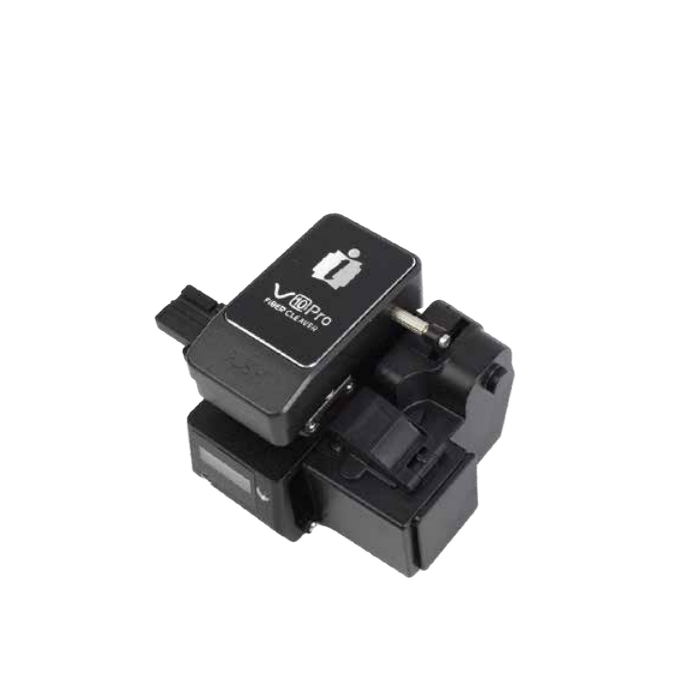

INNO V10 Pro Fiber Cleaver

Type: Single fiber and Ribbon Fiber

Cladding Diameter: 125μm

Cleaved Length: single fiber: 5mm-24mm (Coating diameter ≤250μm), 10mm-20mm (Coating diameter >250μm), Ribbon Fiber: 10mm

Applicable Fiber Cable: Single fiber: 160μm to 900μm, 2mm-3mm and drop cable; Ribbon (Multi) Fiber: 2-16 ribbon fibers

Cleaved Angle: Single Fiber: 0.5°

Typical Blade Life: Total 60000 fiber cleaves (2.500 cleaves per each point, total 24 points)

Weight: 300g (with Auto Trash bin)/ 250g (Without trash pin)

Dimension: 76Lx103Wx63H mm

Operation Condition: -10~50℃/0~95%RH

Storage Condition: -40~80℃/0-95%RH

Battery: Coin type Lithium battery/CR1220

Datasheet
