Weight : 2.17kg without battery / 2.80kg with battery
Applicable Fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable : 0.25~3.0 mm / Indoor Cable
Fiber Count : Single
Fiber Holder : Replaceable (Universal: VFH-40, SOC holder: FH-SOC)
Fiber Diameter : Cladding: 80-150μm
Fiber Cleave Length : Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Splice mode: Max 128 modes
Typical Splice Loss: SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB (ITU-T Standard)
Return Loss: >>60dB
Lighting: 3 White LEDs
Splicing Time: Quick mode : 7 sec / Auto mode : 8 sec
Estimated Splice Loss: Available
Heat Oven/Heating Time : Heat Mode: Max 32 modes / typical heating time: 30 sec
Applicable Protection Sleeve Length : 20mm, 30mm, 40mm, 50mm, 60mm
Results Storage : The last 2,000 splice records and last 2,000 splice result
images Tension Test : 1.96~2.25N
Operating Condition : Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s
Storage Condition : 0~95% relative humidity, -40~80°C, Battery: -20~ 30 °C
Size/ Color : 167H x 143W x 163Dmm (including rubber bumper) / champagne gold
Display : 90° bi-directional view, 5.0” color high resolution (800 x 480) display
Fiber View & Magnification : X, Y, XY, X/Y : 520X Magnification
Power Supply : AC Input 100-240V, DC Input 9-14V
No. of splice/Heating with Battery : 9800mAh Battery Capacity, Typical 355 times (Splice+Heat)
Electrode Life : 3,500 arcs, can be extended by using an electrode grinder
Terminal : USB2.0 / MINI USB
Operation Methods : Button / Touch screen
Automatic Calibration : Automatic arc calibration by air pressure and temperature
PACKAGE:

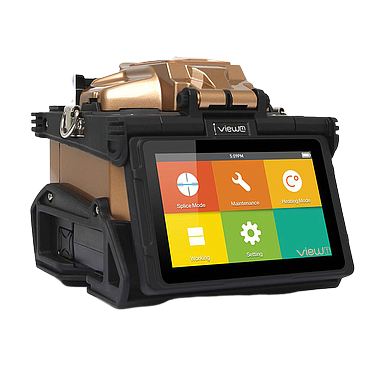

FUSION SPLICER View 5: 1
BATTERY PACK LBT-40: 1
HIGH PRECISION CLEAVER V7: 1
POWER CABLE ACC-25: 1
FIBER HOLDER VFH-40 (equipped) / FH-SOC: 1
AC ADAPTER JS-180300: 1
SOC HEATER COVER HT-SOC: 1
MANUAL CD CD: 1
COOLING TRAY CG-22: 1
USB CABLE USB-5P: 1
ELECTRODE E-50: 2
CIGARETTE LIGHTER CABLE CJ-1: 1
ELECTRODE GRINDER EG-18: 1
CARRYING CASE NBX-35: 1
