SPECIFICATIONS

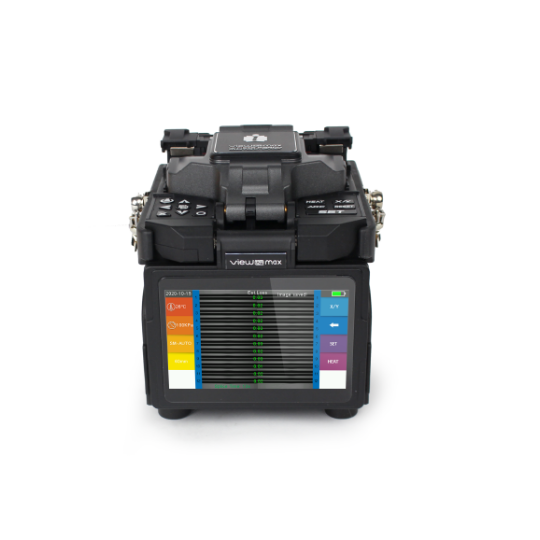

Model: VIEW12R MAX
Alignment Method: Clad alignment
Number of fiber: 1 ~ 12
Applicable fibers: SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
Cladding Diameter: 125μm
Clevaed Length: 10~13mm
Typical Splice Loss: SM: 0.05dB/ MM: 0.02dB/ DS: 0.08dB/ NZDS: 0.08dB (ITU-T standard)
Return Loss: >> 60dB
Estimated Splice Loss: Available
Splice Time: Ribbon Fiber: 15 sec/ Single Fiber: 9 sec
Splice Mode: Max 100 modes
Heating Sleeve: 20 ~ 60mm
Heating Time: Ribbon sleeve (40mm) : 20 sec / Single sleeve (60mm) : 15 sec
Heating Mode: Max 32 modes
Tension Test: 1.96 ~ 2.25N
Dimension: 160H x 133W x 155D mm (excluding rubber bumper) / 167H x 143W x 163D mm (including rubber bumper)
Weight: 1.98kg (without battery) / 2.64kg (with battery)
White LED: 3 White LEDs
Monitor: 5.0” Color LCD display, Full touch screen
Fiber View & Magnification: X, Y, XY, X/Y: 250X Magnification
Results Storage: 10,000 Splice data / 10,000 Splice image
Power Supply: AC Input 100 ~ 240V, DC Input 9 ~ 14V
Terminal: USB2.0 / TypeC
Battery Capacity: LBT-30, Typical usage: 220 cycles / Power save usage : 260 cycles
Electrode Life: 3000
ENVIRONMENTAL CONDITION & TEST
-Operating Condition:
Altitude: 0 ~ 3660m
Humidity: 0 ~ 95%, non-dew
Temperature: -10 ~ 50 ºC
Wind: up to 15m/sec
-Storage Condition:
Humidity: 0 ~ 95%, non-dew
Temperature: -40 ~ 80 ºC
-Resistance Tests:
Shock Resistance : 76cm for bottom surface
Exposure to Dust : 0.1 to 500um diameter aluminium silicate
Rain Resistance : 10 mm/h for 10 mins
