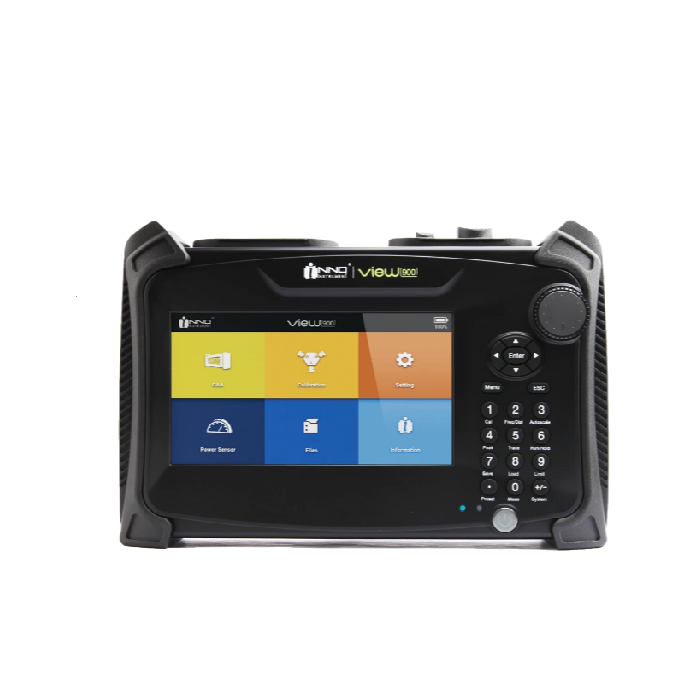

INNO VIEW900 Cable Antenna Analyzer

General

Max input power: +25 dBm (+33 dBm damage level)

Frequency Range: 5 MHz to 6 GHz

Frequency Accuracy: < ±3 ppm

Frequency Resolution: 10 kHz

Scan Speed: Reflection: < 0.7 ms/point

DTF: < 1.0 ms/point

Number of Data points: 129, 257, 513, 1025, 2049

Display: Single & Dual display

Test Port: N-Type Female, 50 Ω

Storage: Internal: Minimum 512 MB

VSWR

Return Loss Range: 0-60dB

VSWR Range: 0-65dB

Cable Loss: 0-20dB

DTF

Return Loss Display Range: 0-60dB

VSWR Display Range: 0-65dB

Distance Range: 0-1250m

Miscellaneous

Dimension: 272 x 188 x 65 mm (10.7 × 7.4 × 2.55 inches)

Weight: 2.1 kg (include battery)

Voltage and Current: 12 VDC, 3.0 A

Adaptor: AC Input: 100 to 240 V, 1.5 A

DC Output: 12 VDC, 3.0 A

Battery: Li-ion 7800mAH

Operating Temperature: -10 °C ~ +50 °C (14 °F ~ +122 °F)

Storage Temperature: -40 °C ~ +80 °C (-40 °F ~ +176 °F)

Humidity: 95 % R.H. No Condensation
