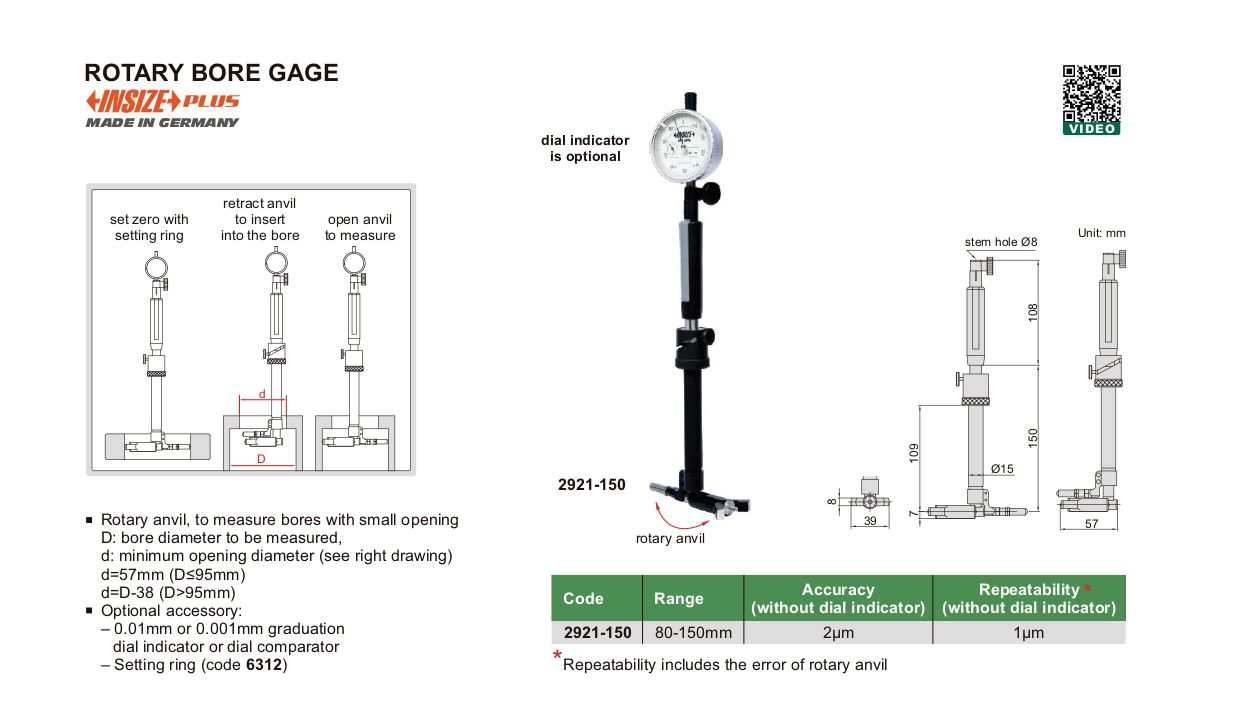

Range: 80-150mm
Accuracy (without dial indicator): 2μm
Repeatability (without dial indicator): 1μm

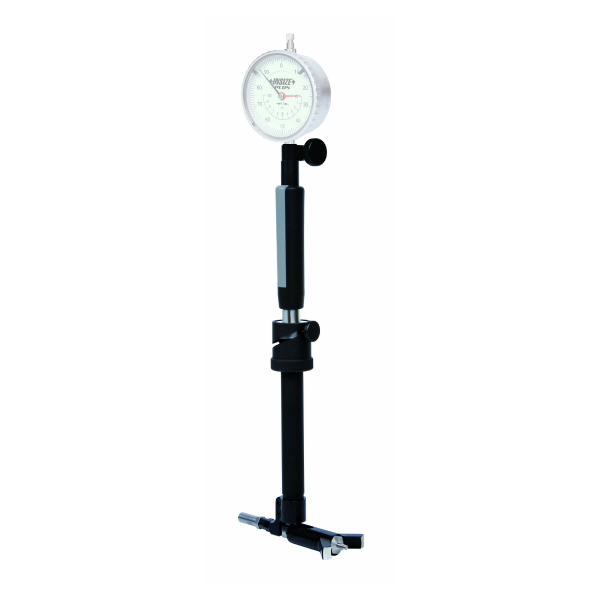

Rotary anvil, to measure bore with small opening
D: bore diameter to be measured
d: minimum opening diameter (see right drawing)
d=57mm (D≤95mm)
d=D-38 (D>95mm)
Optional accessory:
- 0.01mm or 0.001mm graduation dial indicator or dial comparator
- Setting ring (code 6312)
