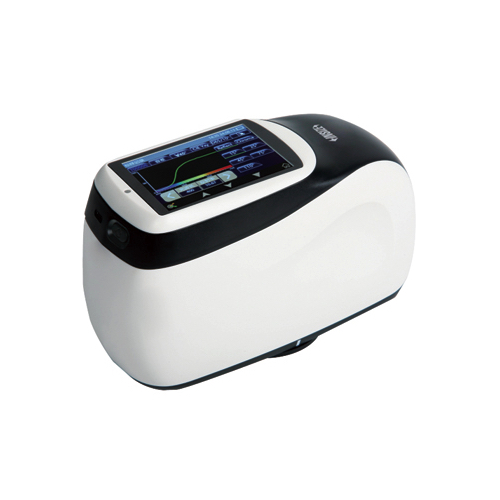

INSIZE 5705-MS45 Multi-Angle Spectrophotometer (400nm~700nm, 0~600%)

Measurement Geometry: 5 measurement angles (5 illumination sources, 1 receiver)

Measuring Angle: 45° receiver: 45as15°, 45as25°, 45as45°, 45as75°, 45as100°

Lighting Source: Full spectrum LED light source with blue enhancement

Lamp Life: 5 years, 3 million times measurements

Spectrophotometric Mode: Concave grating

Sensor: 256 image element double array CMOS image sensor

Wavelength Range: 400nm7~00nm

Wavelength Interval: 10nm

Measurement Range: 0~600%

Semiband Width: 10nm

Measuring Aperture: Illuminant Ø23mm, Sampling Ø12mm

Color Space: CIE LAB, XYZ, Yxy, Lch, ẞxy, DIN Lab99

Color Difference Formula: AEab, ΔΕ94, ΔΕcmc (2:1), ΔΕcmc (1:1), ΔΕ*00, DINAE99, AE DIN6175

Other Colorimetric Index: Flop index

Observer Angle: 2°/10°

Illumination: D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30)

Measuring Time: Approx. 1 second for one angle, approx. 5 seconds for all angles

Repeatability: Spectral reflectance: standard deviation within 0.08%, chromaticity value: AEab 0.03

Reproducibility: ΔΕ*<0.10 (avg on the gray tile of BCRA tile set), ΔΕ*<0.25 (avg on the color BCRA tile set)

Trigger Mode: Pressure sensing, trigger, key trigger, software trigger

Measuring Mode: Single measurement, average measurement (199), continuous measurement (199)

Locating Method: Color camera preview

Power: Li-ion battery, 3.7V, 3200mAh, continuous test 6000 times within 8 hours of full charge

Display Screen: 3.5-inch TFT color LCD, capacitive touch screen

Interface: USB, Bluetooth 5.0

Data Storage: Standard 1000 pcs, sample 4000 pcs

Calibration: Built-in white board parameters, external white board, black light trap

Calibration Interval: 4 hours, 8 hours, 24 hours, startup calibration

Dimension: 195x83x128mm

Weight: 1kg

STANDARD DELIVERY:

Main unit: 1 pc

Black light trap: 1 pc

White board: 1 pc

Software and USB cable: 1 pc

Power adapter: 1 pc

Bluetooth receiver: 1 pc
