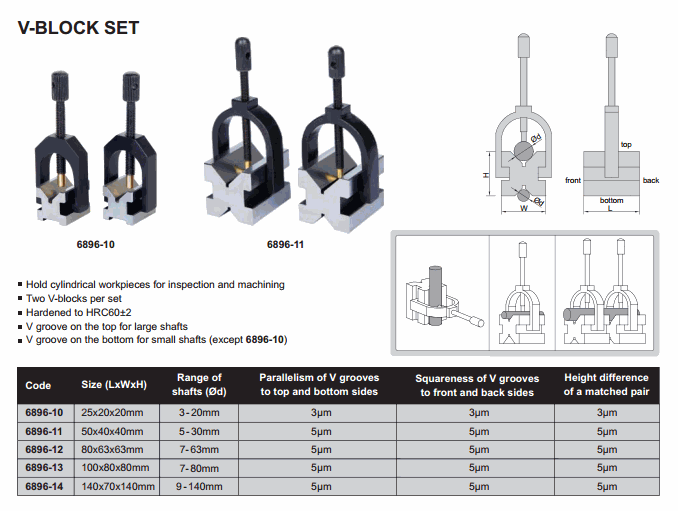

Size: 50x40x40mm
Range of shafts (Ød): 5~30mm
Parallelism of V grooves to top and bottom sides: 5µm
Squareness of V grooves to front and back sides: 5µm
Height difference of a matched pair: 5µm
Two V-blocks per set
Hardened to HRC60±2
V groove on the top for large shafts
V groove on the bottom for small shafts (except 6896-10)
Hold cylindrical workpieces for inspection and machining
