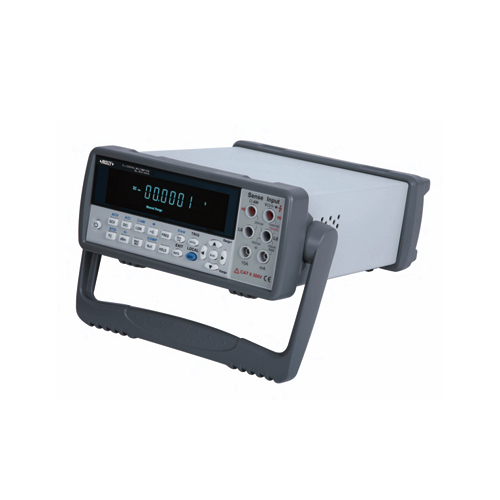

INSIZE 9231-H610 Digital Multimeter (Basic Type) (1000VDC 750VAC, 10AAC/DC)

DC Voltage: 100mV/1V/10V/100V/1000V; Basic Accuracy (Reading% + Range%): ±(0.0035 + 0.0005)

AC Voltage: 100mV/1V/10V/100V/750V; Basic Accuracy (Reading% + Range%): ±(0.05 + 0.03)

DC Current: 10mA/100mA/1A/10A; Basic Accuracy (Reading% + Range%): ±(0.015 + 0.005)

AC Current: 10mA/100mA/1A/10A; Basic Accuracy (Reading% + Range%): ±(0.1 + 0.03)

Resistance: 100Ω/1ΚΩ/10ΚΩ/100ΚΩ/1ΜΩ/10ΜΩ/100ΜΩ; Basic Accuracy (Reading% + Range%): ±(0.01 + 0.001)

Capacitance: 10nF/100nF/1µF/10μF/100μF/1000µF/10mF; Basic Accuracy (Reading% + Range%): ±(1 + 0.5)

Frequency: 3Hz~100kHz; Basic Accuracy (Reading% + Range%): ±(0.01)

Temperature: Supports thermocouple and RTD testing (manual cold-end compensation)

Continuity Check: Range 1000Ω, threshold 200Ω

Diode Test: 0V-5V

Frequency Response: 100kHz

Mathematical Operations: Maximum, minimum, average, relative, dBm

Interface: USB/RS232 communication interface

Environmental Conditions

Operation Environment: 0°C~40°C, humidity <80%; 40°C~50°C, humidity <70% (non-condensation)

Storage Environment: -25°C~60°C, humidity <90% (non-condensation)

Power Supply: 220V±10%, 50/60Hz

Size (W×H×D): 310×255×109mm

Weight: 4.1kg

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Test lead: 2 pcs

Test clip: 2 pcs

RS232 cable: 1 pc

USB cable: 1 pc
