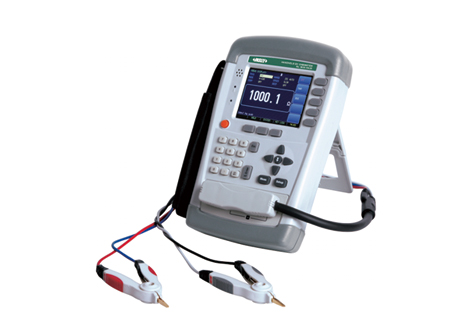

INSIZE 9650-HA20 Handheld DC ohmmeter (20mΩ ~ 20MΩ)

Range

High current mode:

Slow & medium speed test:

20mΩ ±(0.5%+3d)

200mΩ/ 2Ω/ 20Ω/ 200Ω/ 2kΩ/ 20kΩ/ 200kΩ ±(0.05%+1d)

2MΩ ±(0.5%+1d)

20MΩ ±(1%+3d)

Fast speed test:

20mΩ ±(0.5%+5d)

200mΩ/ 2Ω/ 20Ω/ 200Ω/ 2kΩ/ 20kΩ/ 200kΩ ±(0.1%+3d)

2MΩ ±(1%+3d)

20MΩ ±(2%+5d)

Low current mode*:

Slow, medium, fast speed test:

20mΩ ±(0.5%+5d)

200mΩ/ 2Ω/ 20Ω/ 200Ω/ 2kΩ/ 20kΩ/ 200kΩ ±(0.1%+3d)

2MΩ ±(1%+3d)

20MΩ ±(2%+5d)

Resolution

High current mode:

Slow & medium speed test:

0.01mΩ

0.01mΩ/ 0.001Ω/ 0.001Ω/ 0.01Ω/ 0.01Ω/ 0.01kΩ/ 0.1kΩ

0.0001MΩ

0.01MΩ

Fast speed test:

0.01mΩ

0.01mΩ/ 0.0001Ω/ 0.001Ω/ 0.01Ω/ 0.01Ω/ 0.0001kΩ/ 0.001kΩ/ 0.01kΩ

0.0001MΩ

0.01MΩ

Low current mode*:

Slow, medium, fast speed test:

0.01mΩ

0.01mΩ/ 0.0001Ω/ 0.001Ω/ 0.01Ω/ 0.01Ω/ 0.0001kΩ/ 0.001kΩ/ 0.01kΩ

0.0001MΩ

0.01MΩ

Range mode:auto range, manual range and nominal range

Test speed:slow: 3t/s, medium speed: 15t/s, fast: 30t/s

Trigger:internal trigger, manual trigger, remote trigger

Interface:Mini USB interface, compatible with SCPI command

Power supply:rechargeable lithium battery (operating time ≥ 8 hours), power adapter-powered

Dimension:130x210x38mm

Weight:700g

Standard Delivery:

Main unit:1pc

Power adapter: 1pc

Mini USB communication cable:1pc

Test clip:1pc

* When using the 2MΩ and 20MΩ ranges, it is recommended to select the high current mode.

■Maximum reading: 20000

■Basic accuracy: 0.05%

■ 3.5 inch LCD screen with adjustable backlight

■ Temperature compensation function

■ Full-range short-circuit zero function

■ Comparator function: upper and lower limit alarms

■ Data hold

■ Keyboard lock function

■ Automatic power off
