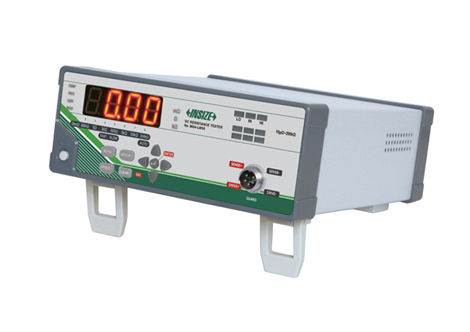

INSIZE 9654-LW50 DC resistance tester (50mΩ ~ 200kΩ)

Range

Slow test:

50mΩ ±(0.2%+5d)

500mΩ ±(0.2%+3d)

5Ω/50Ω/500Ω/5kΩ±(0.2%+2d)

50kΩ ±(0.2%+3d)

200kΩ ±(0.2%+5d)

Fast test:

50mΩ ±(0.5%+5d)

500mΩ/5Ω/50Ω/500Ω/5kΩ/50kΩ ±(0.5%+3d)

200kΩ ±(0.5%+5d)

Resolution

Slow test:

0.01mΩ

0.1mΩ

0.001Ω/0.01Ω/0.1Ω/0.001kΩ

0.01kΩ

0.1kΩ

Fast test:

0.01mΩ

0.1mΩ/0.001Ω/0.01Ω/0.1Ω/0.001kΩ/0.01kΩ

0.1kΩ

Range mode:auto range and manual range

Test speed:slow: 3t/s, fast: 10t/s

Beep:OK, NG

Power supply:AC: 220V±10%, 50Hz

Dimension:259x220x85mm

Weight:2.1kg

Standard Delivery:

Main unit:1pc

Test clip:1pc

■ Maximum reading: 5000

■ Basic accuracy: 0.2%

■ 0.8 inch high brightness digital tube

■ Full-range short-circuit zero function

■Comparator function: upper and lower limit alarms
