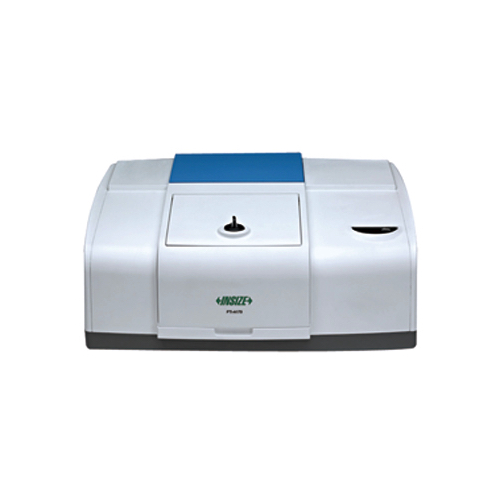

INSIZE FTI-A170 Fourier Transform Infrared Spectrometer (7800~350 cm⁻¹)

Spectral range: 7800~350 cm⁻¹

Resolution: better than 1.0 cm⁻¹

Signal-to-noise ratio: better than 30000:1

Detector: infrared detector

Beam splitter: multi-coated potassium bromide, with humidity-resistant coating

Scanning speed: microcomputer control and selection of different scanning speeds, gear continuously adjustable

Source of infrared light: long-life, high-intensity air-cooled infrared light source

Wavenumber precision: 0.01 cm⁻¹

Software function:

1.with spectrum annotation function

2.with spectrum search and comparison function

3.spectrogram self-addition function, spectrogram matching analysis function

4.with tools for peak labeling/differential spectra (quadratic operation of spectra)/smoothing, etc.

5.with peak height/peak area measurement tools export report

6.provide at least 200,000 infrared spectra of commonly used compounds

Working environment: 20%-50% RH

Weight: 14 kg

Dimension (L×W×H): 450×350×210 mm

Power: AC 220V, 50 Hz

STANDARD DELIVERY:

Main unit: 1 pc

Computer: 1 pc

Software: 1 pc

ZnSe crystals ATR attachment: 1 pc

Datasheet
