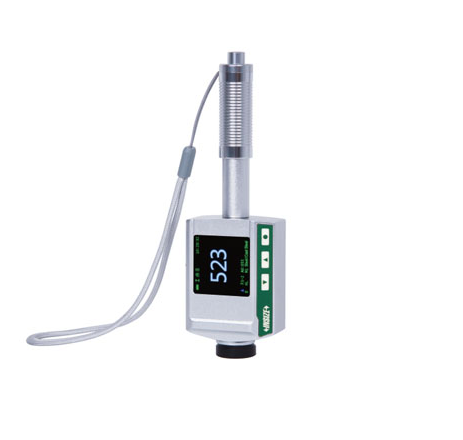

INSIZE HDT-L410 Pen-Type Leeb Hardness Tester (±4HLD)

Resoluton: 1HLD; 1HV; 1HB; 0.1HRC; 0.1HRB; 0.1HRA; 0.1HS; 1SGM

Accuracy: ±4HLD (when HLD= 800)

Applicable workpiece:

+ Minimum weight: 5kg (direct measurement); 2kg (on solid support); 0.05kg ( coupled on plate)

+ Minimum thickness: 5mm

+ Minimum radius of curved surface: 30mm

+ Maximum roughness (Ra): 2µm

Power supply: built-in 3.7V rechargebale battery

Dimension; 148x44x22mm

Weight: 115g

Standard delivery:

Main unit: 1pc

Hardness test block D: 1pc

Small support ring: 1pc

Cleaning brush: 1pc

AC/DC adapter: 1pc

Software flash disk and USB cable: 1pm

Optional:

Printer: HDT-L410-PRINTER

Hardness test block D: HDT-B-HLD3

DL probe: HDT-L410-DL

Datasheet
