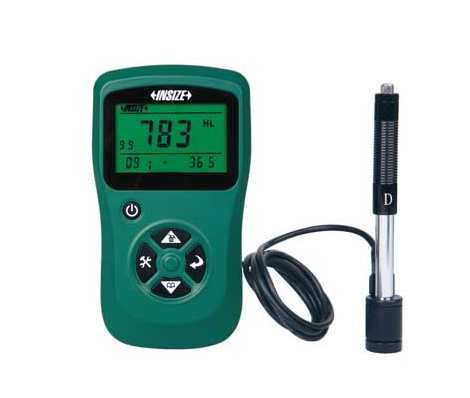

INSIZE ISH-PHB-B Portable Leeb Hardness Tester (Built-in Bluetooth)

Min.reading: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa

Accuracy: ±6HLD (When HLD=800)

Display: leeb(HLD), converted hardness, material, impact direction, test times, average value, date

Output: blutooth, USB

Applicable workpiece: minimum weight: 5kg, 2kg(on solid support), 0.1 kg (coupled on plate)

Minimum thickness: 5mm

Minimum radius of curved surface: 30mm

Maximum roughness(Ra): 1.6um

Power supply: 3xAAA batteries

Dimension: 150x84x28mm

Weight: 200g

Standard delivery:

Main unit: 1pc

Impact device D: 1pc

Hardness test block D: 1pc

USB cable: 1pc

Small support ring: 1pc

Cleaning brush: 1pc

Datasheet
