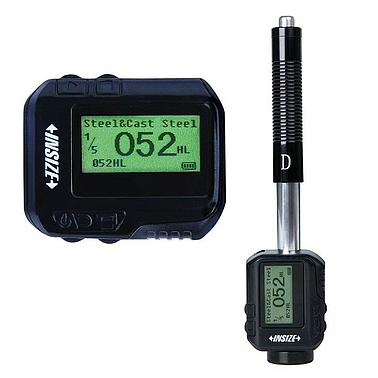

INSIZE ISH-SPHD Portable Hardness Tester

SPECIFICATION:
Min. reading: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS
Accuracy: ±6HLD (when HLD=800)
Output: USB and bluetooth
Applicable workpiece:
- minimum weight:
+ 5kg (direct measurement)
+ 2kg (on solid support)
+ 0.1kg (coupled on plate)
- minimum thickness: 5mm
- minimum radius of curved surface: 11mm
- maximum roughness(Ra): 1.6 m
Power supply: built-in rechargeable battery
Dimension: 147×35×22mm
Weight: 65g
STANDARD DELIVERY: Main unit, Printer, Hardness test block, Small support ring, Cleaning brush, AC/DC adapter, USB cable and software disc

 OPTIONAL ACCESSORY: Couplant, Support rings.
