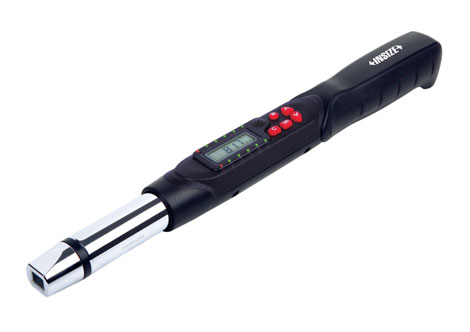

Range: 27~135N.m
Accuracy
clockwise: ±2%
counter-clockwise: ±3%
Resolution: 0.1N.m
Socket size (AxB): 12x9mm
Arm length (L1): 287.7mm
Power supply: 2xAA batteries, for 110 hours working
Weight: 1570g
RATCHET HEAD (INCLUDED) SPECIFICATION
Square driver (D): 3/8"
Length (L2): 29mm
STANDARD DELIVERY
Torque wrench: 1 pc
Ratchet head: 1 pc
Torque wrenches:
■ Unit: N.m, in.lb, ft.lb, kg.cm
■ Clockwise and counter-clockwise operation
■ Peak and track working modes
■ Can set tolerance with judgement in peak working mode
■9 target torque values can be set, with audible and visible alarm: Green LED light on and buzzer sounds when torque value
is 80%~99.5% of target torque
Both green and red LED light on and buzzer sounds when torque value is over 99.5% of target torque
■ Power off in 2 minutes automatically without any operations ■ Non-slip grip handle
With overload record
(once the torque reaches 110% of the maximum range)
Data transmission:
■ Built-in Bluetooth 4.0 module, which can be connected with computers (with Bluetooth function), mobile phones, tablets and other devices
■ Keyboard signal, can be transmitted to Excel, Word, TXT
■ Transmission distance is 10 meters (no obstacles, no electromagnetic interference)
■ Bluetooth connection and disconnection are respectively shown by indicator lights
