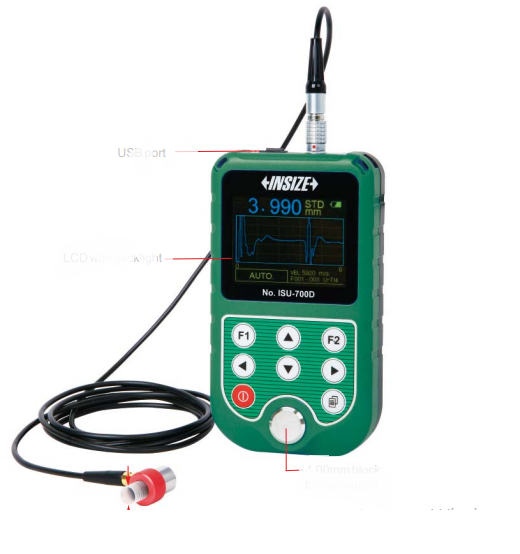

INSIZE ISU-700D Ultrasonic Thickness Gage (For Thin Workpiece) ((T-E): 1.5-20mm; (E-E): 0.2-10mm)

Measuring range:

- Transmit-echo (T-E) mode: 1.5-20mm

- Echo- echo (E-E) mode: 0.2-10mm

Measuring unit: mm/inch

Resolution: 0.1/0.01/0.001mm

Accuracy:

- ±0.04mm (H<9.99mm)

- ±(0.04+0.1%H)mm (H: 10~99.9mm)

- H is the thickness to be measured in mm

Transducer:

- Type: Monocrystal probe

- Frequency: 15.0MHz

- Diameter (Ød): 7.5mm

Display: 320x240, color screen display

Velocity: 1000~9999m/s

Measuring frequency: 2 times/sec and 10 times/sec

Applicable temperature: -20~50oC

Output: USB

Power supply: 2x1.5V AA batteries

Dimension: 133x75x29mm

Weight: 260g (including batteries)
