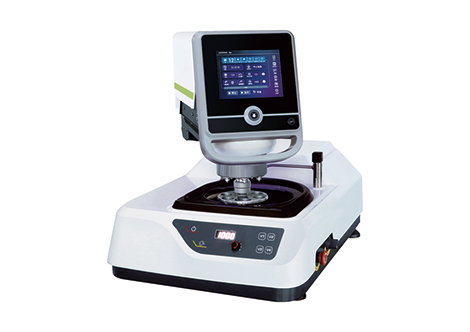

Specification:
Wheel diameter:Ø250mm (customisable)
Wheel rotation speed:0~1000r/min (adjustment step 20rpm), 150r/min, 300r/min, 600r/min, 1000r/min (four fixed speeds)
Wheel rotation direction:clockwise or counterclockwise
Grinding head speed:50~150r/min (stepless adjustable)
Pressure range:5~60N (single point loading), 20~200N (centre loading)
Operation number:6
Operation time:0~12h
Sample diameter:Ø30mm (customisable)
Air pressure:>0.35MPa
Programmable quantity:256 sets of grinding programs can be stored
Power supply:AC 220V, 50HZ, 2.1KW
Dimension (WxHxD):596×714×707mm
Weight:102kg
Standard Delivery:
Main Unit:1 pc
Silicon carbide paper:20 pcs each, (240, 400, 800, 1200), 80 pcs in total
Poloshing cloth:3 pcs each (velvet silk, woolen fabric), 6pcs in total
Polishing agent:1 pc (W2.5,500ml)
Spray polish agent:1 pc (W2.5,500ml)
Anti-stick disc:1 pcs (Ø250mm)
Magentic pad:5 pcs (Ø250mm)
■ABS shell and stainless steel parts, anti-corrosion, easy to clean
■Can hold up to 6 samples (4 holes are optional)
■Smooth rotation, low noise
■Adjustable speed
■Intuitive pressure and time setting, 256 sets of grinding and polishing programs can be stored
■Water cooling device and abrasive cleaning nozzle prevent samples from overheating and destroying structure
■Replaceable platen, platen rotation direction can be selected
■Centre loading and single point loading, automatic abrasive distribution
