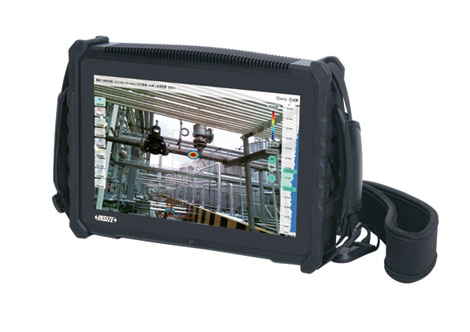

INSIZE SCX-DMM72 Industrial acoustic imager (2kHz~65kHz; 62°x45°)

Specification:

Microphone array:

microphone:72 channels MEMS microphone

frequency band:2kHz~65kHz

sound image field of view:62°x45°

sound image frame rate:25FPS

test sound pressure level range:30dB-120dB

detect distance:0.5m-100m

position accuracy:±1cm

Camera:

camera focal length:3.04mm

focusing mode:automatic

Display screen:

resolution:1024x600

size:10"

touch screen:capacitive

backlight:adjuctable

Storage:

data interface:TF memory card/USB 3.0/TYPE-C

data storage format:.jpg (picture), .mp4 (video)

Power system:

battery type:rechargeable lithium-ion battery, working time about 4h

charging mode:TYPE-C charging; portable charger, capable of charging while using

Environment parameter:

switch-on temperature:-10°C~40°C

operating temperature:-25°C~50°C

storage temperature:-20°C~40°C

relative humidity:10%RH~95% RH (non-condensing)

Physical parameter:

lamp:1w

shell material:aluminium alloy, drop-proof design

protection:IP56

dimension:272mmx200mmx50mm

weight:2.1kg (including handle and shoulder strap)

Standard Delivery

Main unit: 1pc

128G TF card:1pc

Reader:1pc

Power adapter:1pc

■ Suitable for gas leakage detection under the pressure or vacuum conditions, equipment noise localization, partial discharge localization and other scenarios

■ Partial discharge pattern display function: real-time display of pulse emission pattern

■ Leakage assessment function: adjustable measuring distance, more accurate assessment of the leakage rate

■ Intelligent noise reduction function: automatically filter sound signals outside the focus frame

■ Adjustable decibel threshold function: used to filter background noise.

■ Support photo and video recording of fault location

■ Language: Chinese, English
