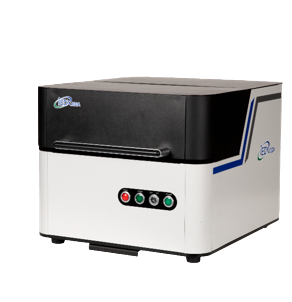

ISP iEDX-120A Materials Analyzer

X-ray tube: Rh Target / W Target(Option), 50kVp 1mA

Detection System: SDD(Option : Fast SDD)

Energy Resolution:

SDD : 125eV FWHM at Mn Kα

Option : Fast SDD(122eV)

Collimator: 4mm (Option : 0.5, 1mm)

Detection Element: Al(13) – U(92)

Sample Type: Solid / Liquid / Powder

Size of the equipment: 500mm X 600mm X 415mm (W x D x H)

Size of the sample chamber: 415mm X 250mm X 135mm (W x D x H)

Key Features

RoHS + Halogen Free simultaneous measurement,

Antimony(Sb), Tin(Sn), Sulfur (S) can be screening

Qualitative and Quantitative analysis with co- exist elements

Camera Magnification: 40~80x

Safety: 3 point interlock

Application

Product screening international environmental regulations

(RoHS, WEEE, ELV compliant)

Hazardous material(Cr, Br, Cd, Hg, Pb, Cl, Sb, Sn, S) Screening equipment

Hazardous substances checks that are contained in the toy’s accessories, precious metals

Recycling, Analysis of the lubricating oil & environmental pollutants

Research and education for elemental component analysis

Electricity, Electron, Automobile, Precious metal, Injection Plating, Packaging etc.
