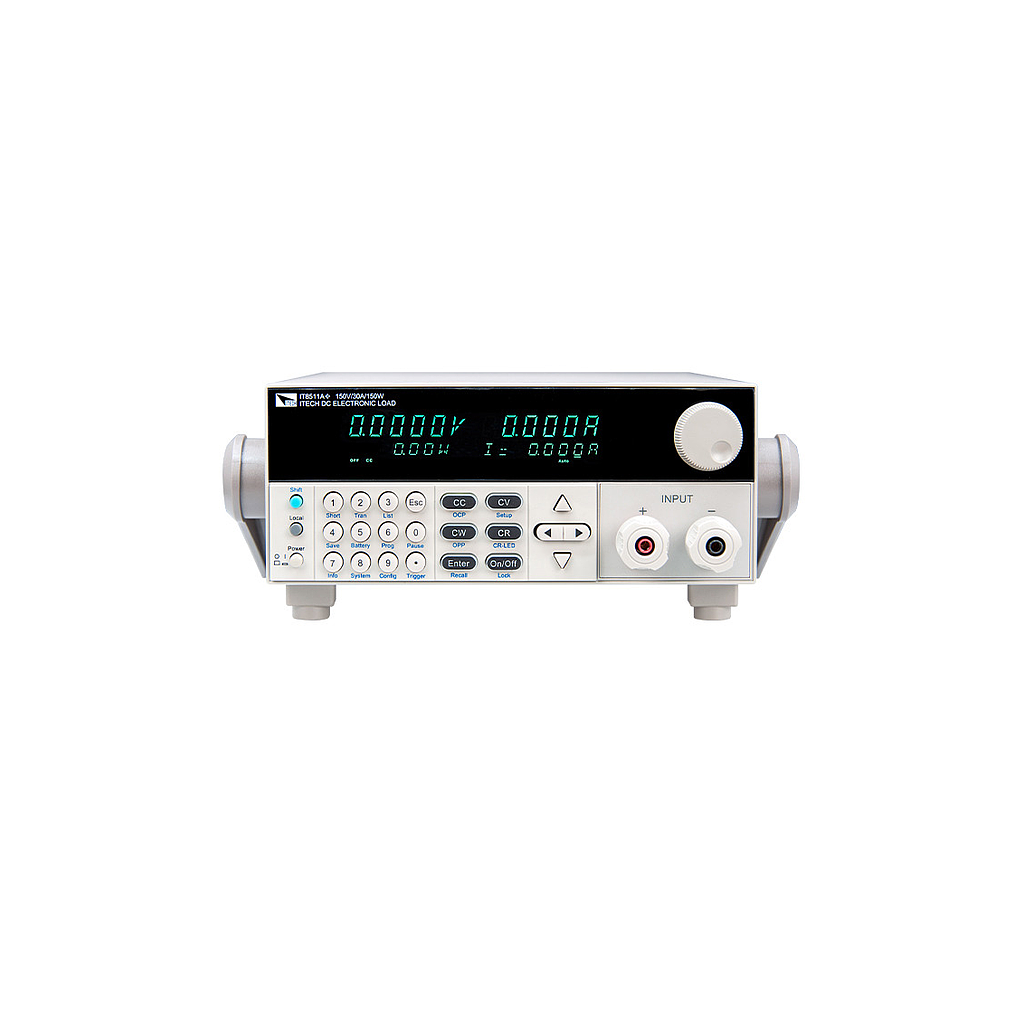

ITECH IT8511B+ Programmable DC Electronic Load (500V, 10A, 150W, 1/2 2U)

Rated (0～40℃)

Voltage: 0~500V

Current: 0~3A, 0~10A

Power: 150W

CV mode

MOV: 1.2V at 3A, 4V at 10A

Range: 0.1~50V, 0.1~500V

Resolution: 1mV, 10mV

Accuracy: ±(0.05%+0.05%FS), ±(0.05%+0.05%FS)

CC mode

Range: 0~3A, 0~10A

Resolution: 0.1mA, 1mA

Accuracy: ±(0.05%+0.05%FS)

CR mode

Range: 0.5Ω~10Ω, 10Ω~7.5KΩ

Resolution: 16bit

Accuracy: 0.01%+0.08S, 0.01%+0.0008S

CP mode

Range: 150W

Resolution: 10mW

Accuracy: ±(0.1%+0.2%FS)

Dynamic mode

T1&T2: 20uS~3600S /Res:1 uS

Accuracy: 2uS±100ppm

Readback Voltage

Range: 0~50V, 0~500V

Resolution: 1 mV, 10 mV

Accuracy: ±(0.025%+0.025%FS)

Readback Current:

Range: 0~3A, 0~10A

Resolution: 0.1mA, 1mA

Accuracy: ±(0.05%+0.05%FS)

Readback Power

Range: 150W

Resolution: 10mW

Accuracy: ±(0.1%+0.2%FS)

Datasheet
