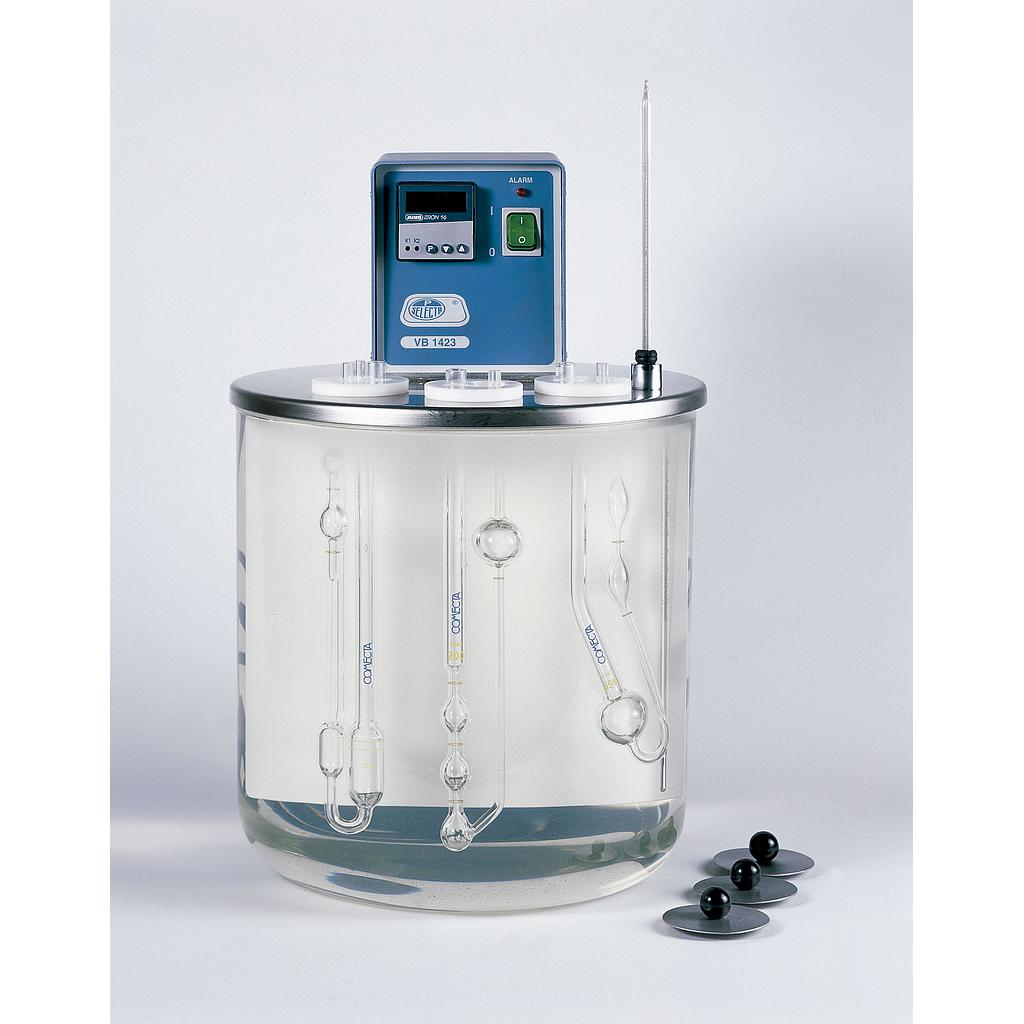

J.P. SELECTA VB-1423 Precision Viscometer Bath (20L; 5~100°C)

Digital temperature control from ambient +5 °C to 100 °C.

Stability ±0.1 °C. Homogeneity ±0.1 °C. Resolution 0.1 °C.

FEATURES

Temperature sensor; Pt100 thermo-resistor, stainless steel AISI 304 lid with three viscometer locations ports, three independent lids and an additional location port for the control thermometer. The main body of the bath is made of a 20 litre borosilicate glass tank. A white plate is located at the back to help optimize and read the viscometers.

CONTROL PANEL

1. Main power switch with luminous ON.

2. Temperature regulator:

3. Real time temperature display.

4. Push button increase value.

5. Push button decrease value.

6. Push button configure operation.

7. Safety thermostat safety lamp.

SPECIFICATIONS

Control range °C: amb.+5 up to 100

Capacity litres: 20

Height (tank) cm: 32

Ø (tank) cm: 30

Height (total) cm: 47

Ø (total) cm: 30

Consumption w: 1000

Weight Kg: 8
