Principle : Ultrasonic Transit-Time using DSP, Dual Path
Mode : AR (Anti-Round) Mode
Display : Large Color LCD (320x240 pixel), flow, total, signal shape, Aux
Oscilloscope Function : signal shape on LCD
DSP Function
Power : 12-24DC
Measuring pipe : 50-2000mm pipe OD
Accuracy : 0.5%
Repeatability : 1.0%
Turn Down Ration : 1000:1
Velocity Range : ±0.01 ~ 30 m/s
Output : 4-20mADC, Ro le , RS-232C
Input : 4-20mADC (option)
Datalogger : 32 Mbytes
Operating Temp. : flow computer +20 ~ +60?; transducer -40 ~ +120?
Enclosure : NEMA 7 (IP67)

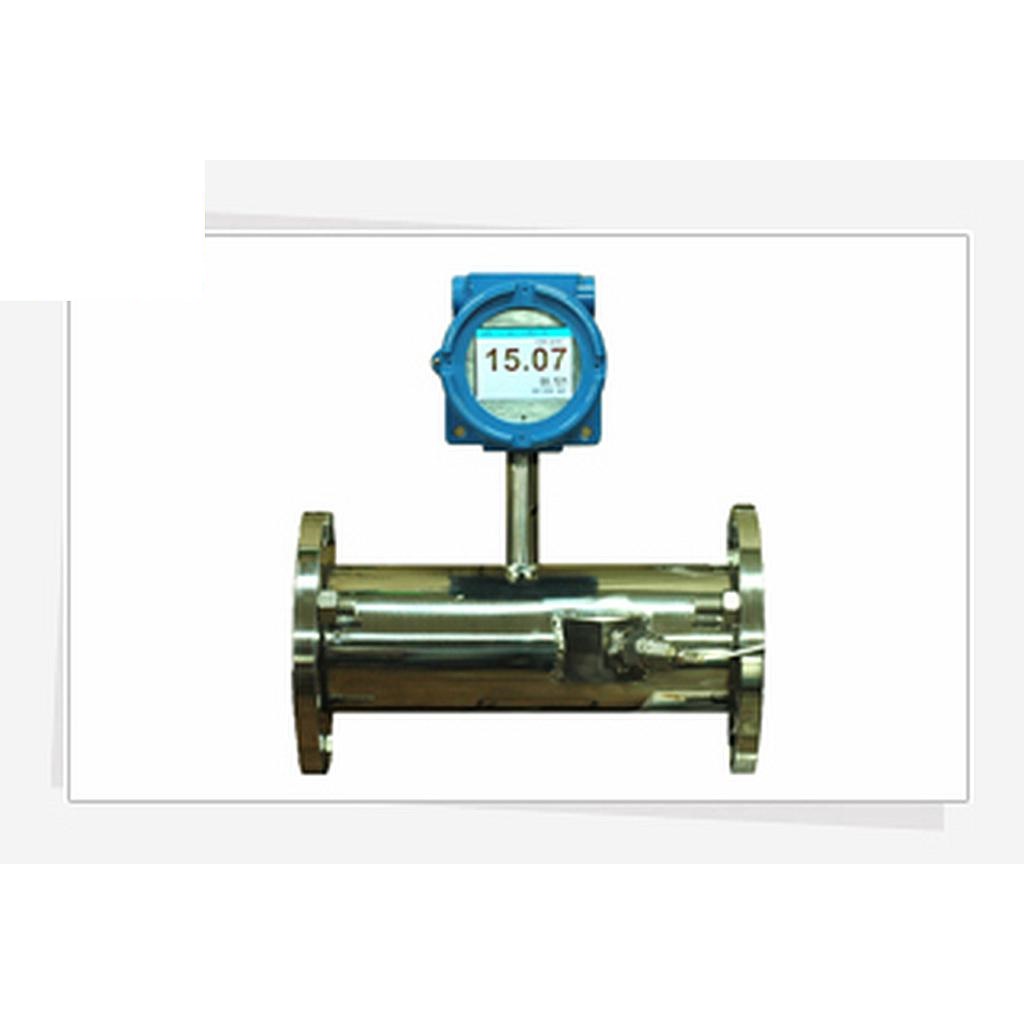

| Ultrasonic Gas Flowemter Xonic 10GX | ||||||||||||||
|
||||||||||||||
 |
||||||||||||||
 |
Specification | |||||||||||||
|
1. Priciple : Ultrasonic Transit-Time using DSP, Single Path 2. Mode : AR (Anti-Round) Mode 3. Display : Large Color LCD (320x240 pixel), flow, total, signal shape, Aux 4. Oscilloscope Function : signal shape on LCD 5. DSP Function 6. Power : 12-24DC 7. Measuring pipe : 50~2000mm pipe OD 8. Accuracy : 0.5% 9. Repeatability : 1.0% 10. Turn Down Ration : 1000:1 11. Velocity Range : ±0.01 ~ 30 m/s 12. Output : 4-20mADC, Relay, RS-232C 13. Input : 4-20mADC (option) 14. Datalogger : 32 Mbytes 15. Operating Temp. : flow computer +20 ~ +60℃ 16. transducer -40 ~ +120℃ 17. Enclosure : NEMA 7 (IP67) |
||||||||||||||
|
||||||||||||||
|
Main Function | |||||||||||||
|
1. NET Certified (NET 0006) 2. Patent 10-0532041, 10-0560364, 10-0780707 3. Oscilloscope Function |
||||||||||||||
