DDE Control Unit
Nominal power: 200 W
Peak power: 150 W per tool
Selectable temperature: 90 to 450 °C / 190 to 840 °F
Idle temp. stability (still air): ±1.5 °C / ±3 °F, meets and exceeds IPC J-STD-001F
Temperature accuracy: ±3 % (using reference cartridge)
Temp. adjustment: ±50 °C / ±90 °F through station setting menu
Tip to ground vol. / resist.: Meets and exceeds ANSI/ESD S20.20 and IPC J-STD-001F
Ambient operating temp: 10 to 40 °C / 50 to 104 °F
Connections
USB-A: Firmware update, graphics and profiles, Dino-Lite USB microscope (models AM2011, AM2111)
USB-B: PC communication
RJ12: Fume extractor / peripherals / robot
MSE Module
Power: 42 W
Vacuum: 85 % / 640 mmHg / 25.4 inHg
Flow rate: 35 SLPM
Ambient operating temp: 10 to 40 °C / 50 to 104 °F
Pedal connector: Yes
Compliance
CE standards: Complies
ESD safe: Yes
Weight and Dimensions
Control unit dimensions: 232 × 148 × 120 mm
Control unit weight: 8.96 kg
Dimensions (inch): 9.13 × 5.83 × 4.72 in
Weight (lb): 19.74 lb
Product Composition

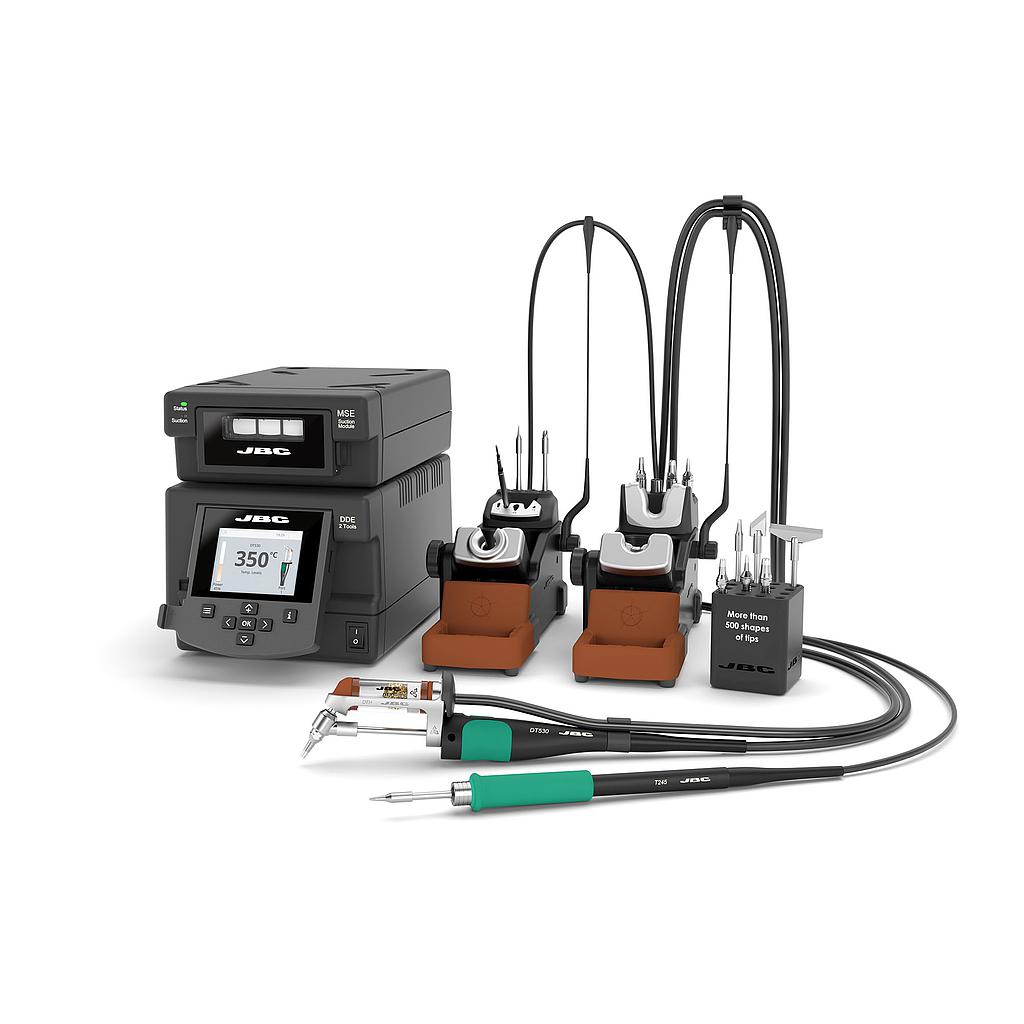

1 - DDE 2-Tool Control Unit
1 - MSE Electric Desoldering Module for DDE & DME
1 - T245 General Purpose Handle (cartridge not included)
1 - DT530 Angled Desoldering Iron (D530003 already inserted)
1 - ADS Stand for T210 & T245 Handles
1 - DTS Stand for DT530
1 - SCH Cartridge and Tips Holder
