Specifications
Nominal power: 200 W
Peak power: 150 W per tool
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air): ±1.5 ºC / ±3 ºF, meets and exceeds IPC J-STD-001F
Temperature accuracy: ±3 % (using reference cartridge)
Temp. adjustment: ±50 ºC / ±90 ºF through station setting menu
Tip to ground vol. / resist.: Meets and exceeds ANSI/ESD S20.20 and IPC J-STD-001F
Ambient operating temp: 10 - 40 ºC / 50 - 104 ºF
Connections USB-A: Firmware update, graphics and profiles, Dino-Lite USB microscope (models AM2011, AM2111)
Connections USB-B: PC communication
Connections RJ12: Fume extractor / peripherals / robot
Compliance
CE standards: Complies
ESD safe: Yes
Weight and Dimensions
Control unit dimensions: 232 × 148 × 120 mm
Control unit weight: 4.57 kg
Dimensions (inch): 9.13 × 5.83 × 4.72 in
Weight (lb): 10.08 lb
Product Composition

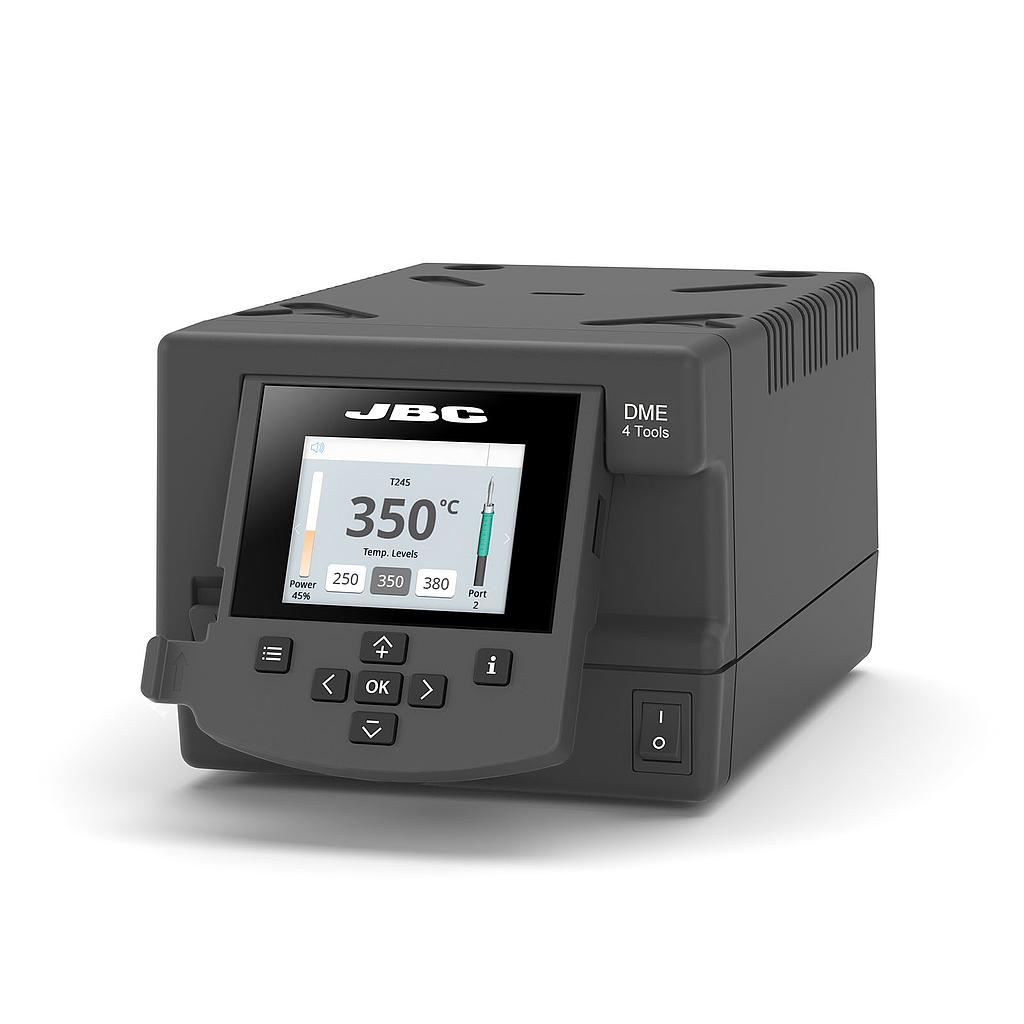

1 - DME 4-Tool Control Unit
