Peak power: 800 W
Selectable temperature 50 to 250 ºC / 120 to 482 ºF
Heating area
65 x 135 mm / 2.6 x 5.3 in - 1 zone
130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector: 4 for Control & Protection
Profiles: 22 (up to 16 steps for each)
Set temperature profiles: 3 profiles (2, 3 or 4 steps)
Maximum work time: 50 min or indefinite
ESD safe: Meet ANSI/ESD S20.20-2021
USB-A: Firmware update/ Graphics and profiles
USB-B: PC communications
Robot connector: Remote control
Aux. connector: Console connection
Pedal connector: Connect a pedal (ref. P-005) to control the heater
Weight and dimensions

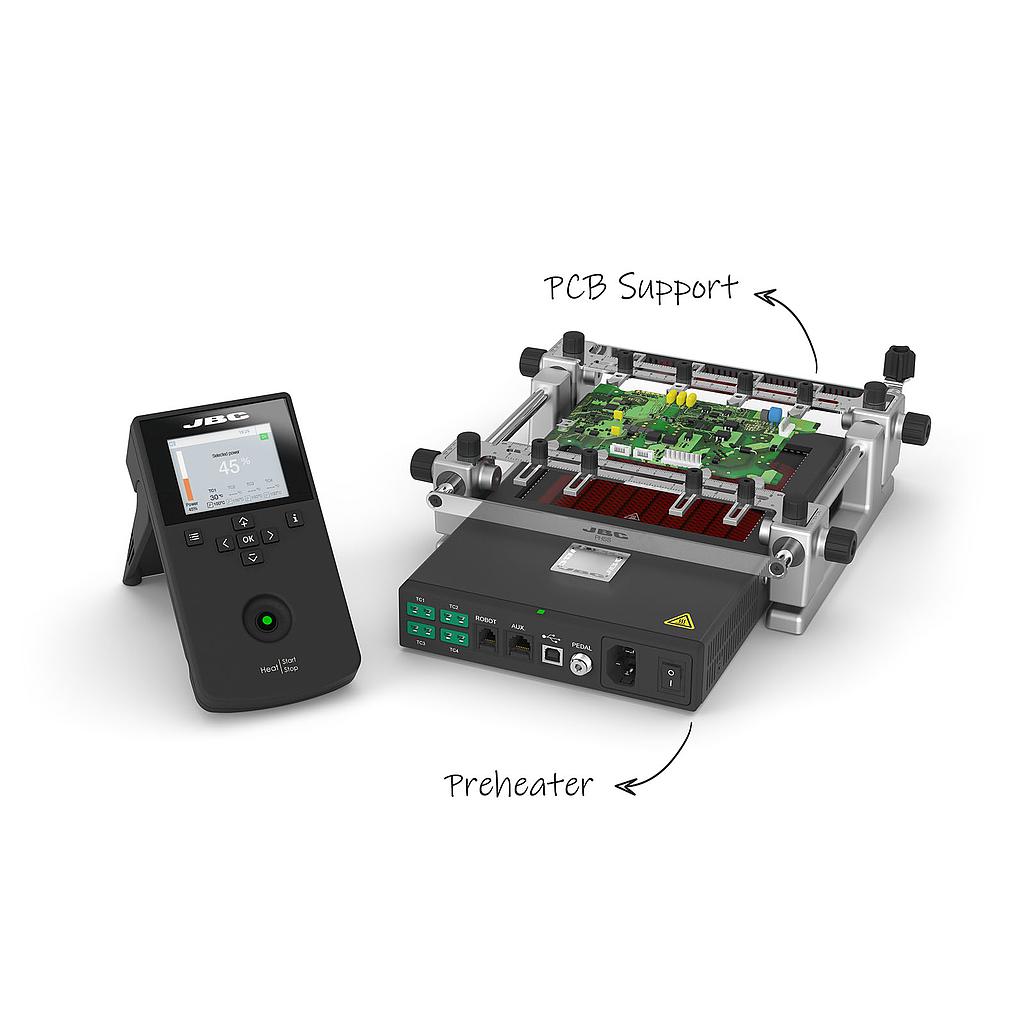

PreHeater Unit
195 x 288 x 42 mm / 4.78 kg.
7.68 x 11.34 x 1.65 in / 10.54 lb.
PRODUCT COMPOSITION
1 Instruction Manual
1 Heater unit
1 Console
1 PHSS Support for PCBs up to 13 x 13 cm / 5 x 5"
2 PH218 Thermocouple Type K
1 PH217 Kapton Tape
