Peak power: 800 W
Selectable temperature 50 to 250 ºC / 120 to 482 ºF
Heating area
255 x 203 mm / 10.04 x 8 in - 1 zone
510 x 610 mm / 20 x 24 in - 6 zones
Type K TC connector: 8 for Control & Protection
Profiles: 22 (up to 16 steps for each)
Set temperature profiles: 3 profiles (2, 3 or 4 steps)
Maximum work time: 50 min or indefinite
ESD safe: Meet ANSI/ESD S20.20-2021
USB-A: Firmware update/ Graphics and profiles
USB-B: PC communications
Robot connector: Remote control
Aux. connector: Console connection
Pedal connector: Connect a pedal (ref. P-005) to control the heater
Weight and dimensions

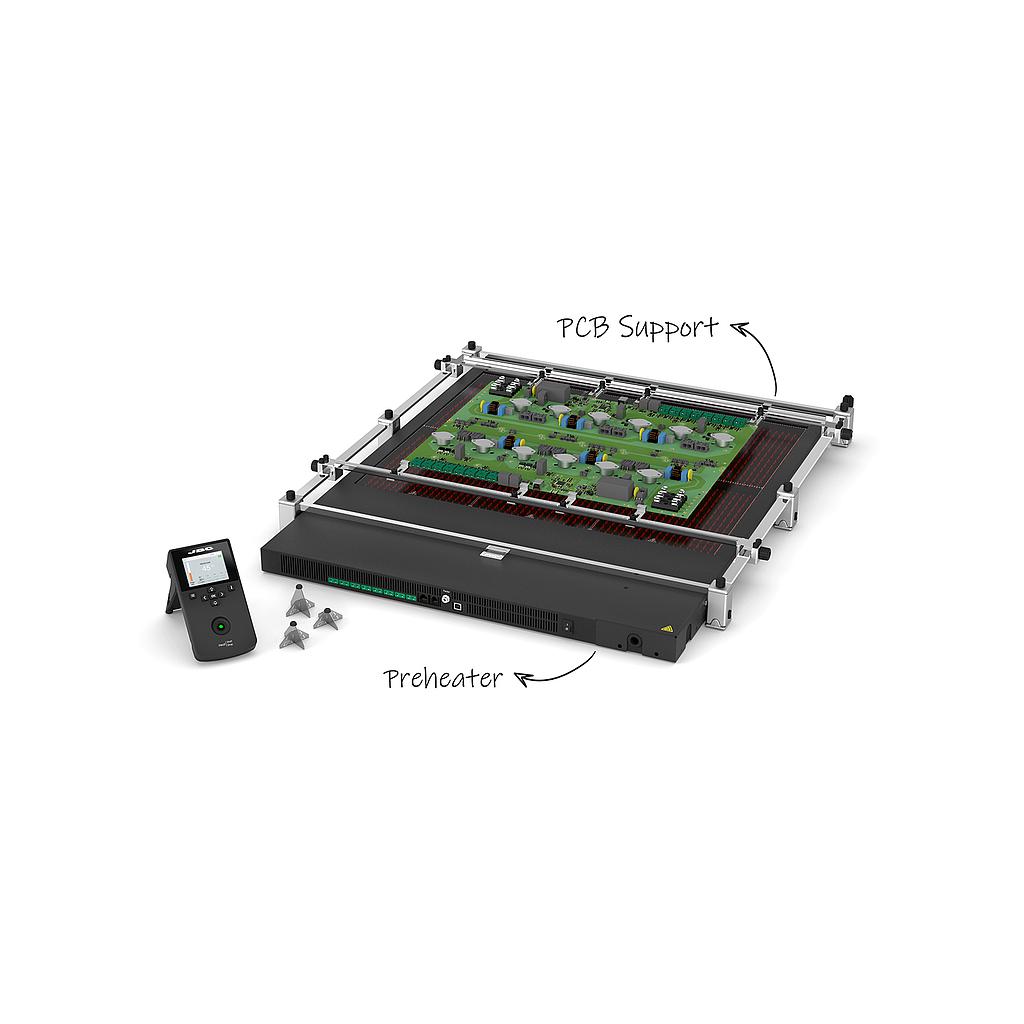

PreHeater Unit
790 x 664 x 42 mm / 23.00 kg.
31.10 x 26.14 x 1.65 in / 50.71 lb.
PRODUCT COMPOSITION
1 Heater unit
1 Console
1 PHXLS Support for PCBs up to 51 x 61 cm / 20 x 24 in
1 PH204 Metallic PCB Support L1 for PHXLS
1 PH205 Metallic PCB Support L2 for PHXLS
1 PH206 Metallic PCB Support L3 for PHXLS
3 PH218 Thermocouple Type K
1 PH217 Kapton Tape
