DDE Control Unit
Nominal power: 200 W
Peak power: 150 W per tool
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air): ±1.5 ºC / ±3 ºF, meets and exceeds IPC J-STD-001F
Temperature accuracy: ±3 % (using reference cartridge)
Temp. adjustment: ±50 ºC / ±90 ºF through station setting menu
Tip to ground vol. / resist.: Meets and exceeds ANSI/ESD S20.20 and IPC J-STD-001F
Ambient operating temp: 10 - 40 ºC / 50 - 104 ºF
Connections USB-A: Firmware update, graphics and profiles, Dino-Lite USB microscope (models AM2011, AM2111)
Connections USB-B: PC communication
Connections RJ12: Fume extractor / peripherals / robot
JTSE Control Unit
Nominal power: 700 W
Selectable temperature: 150 to 450 °C / 300 to 840 °F
Air flow regulation: 5 to 50 SLPM
Vacuum: 30 % / 228 mmHg / 9 inHg
Profiles: 25 (up to 10 steps for each), 1 preset profile
Type K TC connector: 1 for control & protection
ESD safe: Meets ANSI / ESD S20.20-2021
Equipotential bonding: Connection to EPA
USB-A: Firmware update, graphics and profiles
USB-B: PC communications
RJ12 connector: Remote control or FAE fume extractor connection
Pedal connector: Tool control
MSE Module
Power: 42 W
Vacuum: 85 % / 640 mmHg / 25.4 inHg
Flow rate: 35 SLPM
Ambient operating temp: 10 - 40 °C / 50 - 104 °F
Pedal connector: Yes
Compliance
CE standards: Complies
ESD safe: Yes
Weight and Dimensions
Control unit dimensions: 232 × 148 × 295 mm
Control unit weight: 13.85 kg
Dimensions (inch): 9.13 × 5.83 × 11.61 in
Weight (lb): 30.53 lb

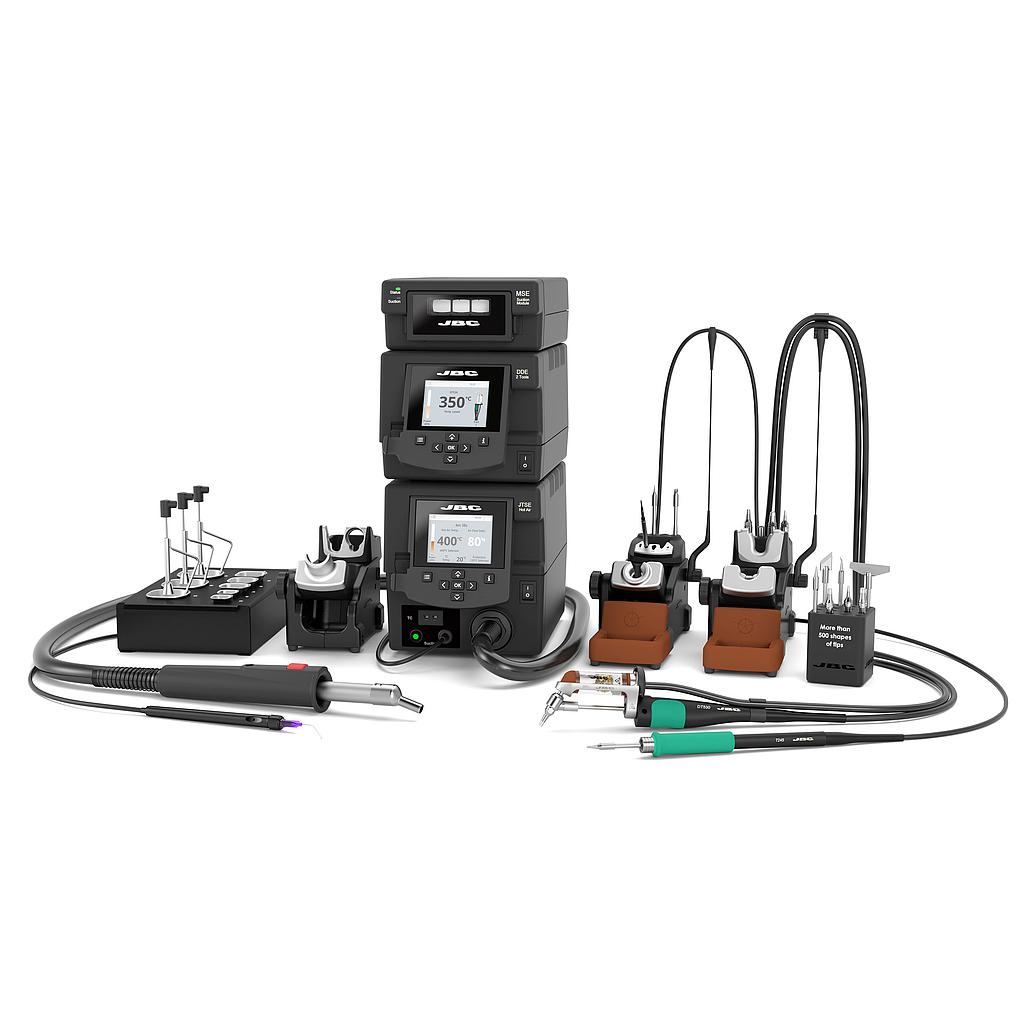

Product Composition
1 - DDE 2-Tool Control Unit
1 - JTSE Power Hot Air Control Unit
1 - MSE Electric Desoldering Module for DDE & DME
1 - T245 General Purpose Handle (cartridge not included)
1 - DT530 Angled Desoldering Iron (D530003 already inserted)
1 - JTT Heater Hose Set
1 - ADS Stand for T210 & T245 Handles
1 - DTS Stand for DT530
1 - JTS Stand for JTT Heater Hose Set
1 - SCH Cartridge and Tips Holder
1 - ESHT Magazine for Protectors & Extractors
1 - T260 Pick & Place Handle
1 - PH218 Thermocouple Type K
