Function: Multicore cable, align wire, stripping wire end, twisting conductor, fluxing & tin soldering
Wire range: 0.8 - 3.0 mm
Raw material: PVC, Teflon, Low halogen, etc.
Jacket stripping length: Min 20 mm
Strip length: Max 16 mm
Twist length: Max 15 mm
Tinning length: 0.5 - 14 mm
Production rate: 500 pcs/h
Recipe saving: Yes
Display: 7" touch screen, English / Chinese [other languages on request]
Power supply: AC 110 - 220V ± 10%, 50 / 60 Hz
Rated power: 700 W
Air supply: 0.5 - 0.7 MPa [Clean and dry air]
Weight: 105 KG
Dimensions: L 850 x W 650 x H 1250 mm
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

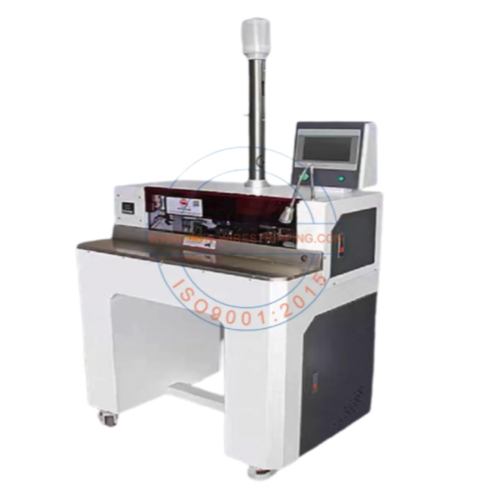

Automatic processing multicore cable
Stripping, twisting, fluxing, tinning
Fully programmable, super user-friendly
Increased productivity, specialize in multicore cable
Perfect tinning solution for multicore cable
