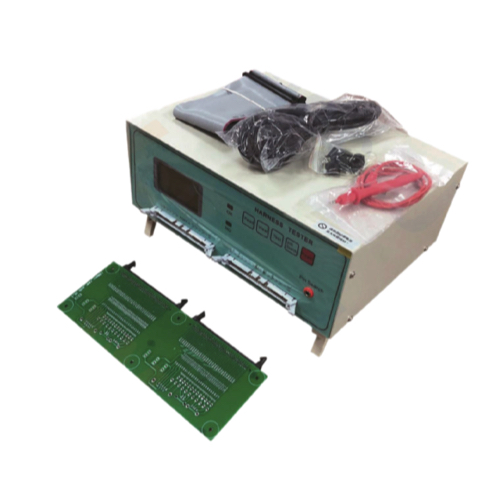

JCW JCW-Q01 Multi-function Wire Continuity Tester (64/128 test points)

Function: Short circuit, Open circuit, Dislocation, Momentary short/open circuit

Test mode: Automatic/Manual mode, Ins.Test (Bending) Test, Loop (cycling) Test, Segment Test, Pin search

Capacity: 64/128 test points

Cycle time: <0.1 second

Wire harness type: Single-end, dual-end

Test voltage: DC 5V

Test current: 20 mA

Test standard: 1K, 2K, 5K, 10K, 50K

File saving: Read and save standard

Ambient temperature:

Work: 0-40°C

Stock: -40-75°C, 0-85% R.H

Power supply: AC 110V-220V ±10%, 50/60 Hz, <10 W

Dimensions: L 310 x W 250 x H 135 mm

Weight: 3 KG
