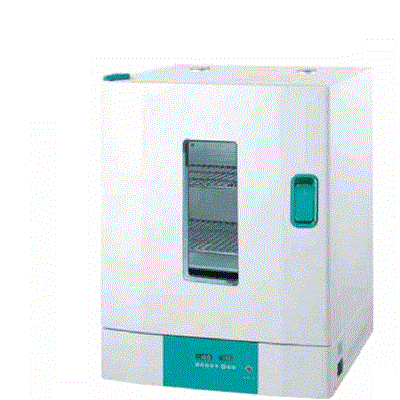

JEIOTECH ON-02G Forced Convection Ovens (52L, 250 ℃)

Name: JEIOTECH ON-02G Forced Convection Ovens (52L, 250 ℃)
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelON-02G

P/NAAH11135K

OriginKorea

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Microprocessor PID control
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
Forced air
RS-232 interface
Chamber volume: 52L
Temperature Range: Amb. +10 to 250 ℃
Temperature Fluctuation: ±0.3 ℃ at 100℃
Temperature Variation: ±5.9 ℃ at 100℃
Dimension Interior: 400×360×365mm
Dimension Exterior: 577×542×760mm
Weight: 49 kg
Power: 230V-50/60Hz/ 4.3A
Include: 2 Wire Shelves

Download Cataloge Jeiotech

Operational Features

Microprocessor PID control
Simple calibration and auto-tuning function
Temperature control: 15°C above ambient to 250°C
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive and easy-to-operate control panel with bright LED display (1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
RS-232 interface

Constructional Features

Gravity flow convection for uniform sample heating
Fully insulated dual-wall door with 180 degree hinges and a pull-down handle
Rounded inner chamber corners for easy cleaning and optimal airflow
Corrosion-resistant incoloy sheath heating element and stainless steel interior
Adjustable dual slide vents for controlling inner vapor circulation (diameter: 38mm/1.5”)
Threefold tempered-glass window providing clear inside view of the chambers (optional)

Model		ON-02G	ON-12G	ON-22G
Chamber volume (L/cu ft)		52 / 1.8	91 / 3.2	135 / 4.8
Temperature	Range (℃/℉)	Amb. +15 to 250 / Amb. +27 to 482
	Fluctuation¹⁾(±℃/℉)at 100℃	0.3 / 0.54
	Variation¹⁾(±℃/℉)at 100℃	5.9 / 10.62	7.5 / 13.5	6.9 / 12.42
Dimension	Interior dimensions (W x D x H) (mm/inch)	400×360×365 / 15.7x14.2x14.4	480×410×465 / 18.9x16.1x18.3	610×460×485 / 24.0x18.0x19.0
	Exterior dimensions (W x D x H) (mm/inch)	577×542×760 / 22.7x21.3x30.0	657×592×870 / 25.9x23.3x34.3	785×642×897 / 30.9x25.3x35.3
	Net weight (Kg/lbs)	49 / 108	59 / 130	68 / 150
Electrical Requirements (230V)		50/60Hz, 4.3A	50/60Hz, 6.0A	50/60Hz, 7.4A
Cat. No.		AAH11135K	AAH11145K	AAH11155K
Electrical Requirements (120V)		50/60Hz, 6.7A	50/60Hz, 8.3A	50/60Hz, 10.0A
Cat. No.		AAH11136U	AAH11146U	AAH11156U

Wire shelf

Stainless steel and electro polished shelf system is removed easily without using tools for easy cleaning.

Models	Description			Cat. No.
Models	Included	Maximum	W×L(mm/inch)	Cat. No.
OF-02G	2	8	366×316 / 14.4X12.4	EDA8136
OF-12G	2	12	446×366 / 17.6X14.4	EDA8135
OF-22G	2	14	516×416 / 20.3X16.4	EDA8134
ON-02G	2	8	366×316 / 14.4X12.4	EDA8136
ON-12G	2	12	446×366 / 17.6X14.4	EDA8135
ON-22G	2	12	576×419 / 22.7X16.5	EDA8137
OF/ ON-01E	2	10	366×316 / 14.4X12.4	EDA8136
OF/ ON-11E	2	14	446×366 / 17.6X14.4	EDA8135
OF/ ON-21E	2	15	576×419 / 22.7X16.5	EDA8137
OF-300G	2	17	708 x 608 / 27.9 x 23.9	RTD1196
OF-450G	3	26	708 x 608 / 27.9 x 23.9	RTD1196
OF-750G	3	35	708 x 808 / 27.9 x 31.8	RTD1197
OF-300H	2	17	708 x 608 / 27.9 x 23.9	RTD1196
OF-450H	3	26	708 x 608 / 27.9 x 23.9	RTD1196
OF-750H	3	35	708 x 808 / 27.9 x 31.8	RTD1197

Perforated shelf

Stainless steel shelf system is removed easily without using tools for easy cleaning.

Models	Description		Cat. No.
Models	Maximum	W×L(mm/inch)	Cat. No.
OF-02G	8	366×316 / 14.4X12.4	AAA12531
OF-12G	12	446×366 / 17.6X14.4	AAA12532
OF-22G	14	516×416 / 20.3X16.4	AAA12533
ON-02G	8	366×316 / 14.4X12.4	AAA12531
ON-12G	12	446×366 / 17.6X14.4	AAA12532
ON-22G	12	576×419 / 22.7X16.5	AAA12535
OF/ ON-01E	10	365×316 / 14.4X12.4	AAA12531
OF/ ON-11E	14	445×366 / 17.6X14.4	AAA12532
OF/ ON-21E	15	575×419 / 22.7X16.5	AAA12535
OF-300G	17	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-450G	26	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-750G	35	708 x 808 / 27.9 x 31.8	AAA80604-3
OF-300H	17	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-450H	26	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-750H	35	708 x 808 / 27.9 x 31.8	AAA80604-3

Recorders

Easy recognizable digital recorders for efficient temperature indicating.

Models	Description	Cat. No.
OF -300, 450, 750 G/W	Recorder (6 Point)	AAA8T500
OF -300, 450, 750 G/W	Recorder (Thermal Line type)	AAAE1503
