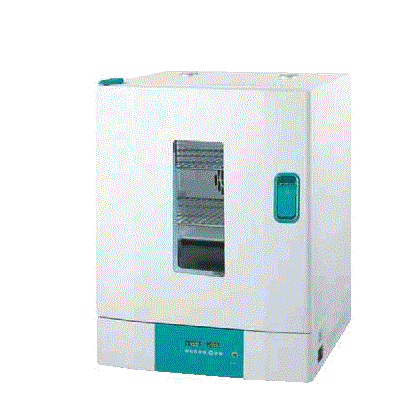

JEIOTECH OF-22G Forced Convection Ovens (151L, 250 ℃)

Name: JEIOTECH OF-22G Forced Convection Ovens (151L, 250 ℃)
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelOF-22G

P/NAAH12175K

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Microprocessor PID control
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
Forced air
RS-232 interface
Chamber volume: 151 L
Temperature Range: Amb. +10 to 250 ℃
Temperature Fluctuation: ±0.8 ℃ at 100℃
Temperature Variation: ±1.7 ℃ at 100℃
Dimension Interior: 550×460×600mm
Dimension Exterior: 727×742×974mm
Weight: 72.5 kg
Power: 230V-50/60Hz/ 7.4A
Include: 2 Wire Shelves

Download Cataloge Jeiotech

Operational Features

Microprocessor PID control
Simple calibration and auto-tuning function
Temperature control: 10°C above ambient to 250°C
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
RS-232 interface

Constructional Features

Forced air convection generated by a noiseless and powerful sirocco fan ensuring optimal air circulation, temperature uniformity, and short heat-up time.
Rounded inner chamber corners for easy cleaning and optimal airflow
Corrosion-resistant incoloy sheath heating element and stainless steel interior
Adjustable dual slide vents for controlling inner vapor circulation (diameter: 38mm/1.5”)
Threefold tempered-glass window providing clear inside view of the chambers (optional)
Fan speed control by an analog dial for preventing powdered samples from blowing away (optional)

Model		OF-02G	OF-12G	OF-22G
Chamber volume (L/cu ft)		60 / 2.1	102 / 3.6	151 / 5.3
Temperature	Range(℃/℉)	Amb. +10 to 250 / Amb. +18 to 482
	Fluctuation¹⁾(±℃/℉)at 100℃	0.5 / 0.9	0 6 / 1.08	0.8 / 1.44
	Variation¹⁾(±℃/℉)at 100℃	1.0 / 1.8	1.3 / 2.3	1.7 / 3.1
Dimension	Interior dimensions (W x D x H) (mm/inch)	400×360×420 / 15.7x14.2x16.5	480×410×520 / 18.9x16.1x20.5	550×460×600 / 22.0x18.0x23.6
	Exterior dimensions (W x D x H) (mm/inch)	577×642×760 / 22.7x25.3x30.0	657×692×870 / 25.9x27.2x34.3	727×742×974 / 28.7x29.2x38.3
	Net weight (Kg/lbs)	53 / 117	63 / 139	72.5 / 160
Electrical Requirements (230V)		50/60Hz, 4.4A	50/60Hz, 6.1A	50/60Hz, 7.4A
Cat. No.		AAH12155K	AAH12165K	AAH12175K
Electrical Requirements (120V)		50/60Hz, 6.8A	50/60Hz, 8.4A	50/60Hz, 10.1A
Cat. No.		AAH12155U	AAH12166U	AAH12176U

Wire shelf

Stainless steel and electro polished shelf system is removed easily without using tools for easy cleaning.

Models	Description			Cat. No.
Models	Included	Maximum	W×L(mm/inch)	Cat. No.
OF-02G	2	8	366×316 / 14.4X12.4	EDA8136
OF-12G	2	12	446×366 / 17.6X14.4	EDA8135
OF-22G	2	14	516×416 / 20.3X16.4	EDA8134
ON-02G	2	8	366×316 / 14.4X12.4	EDA8136
ON-12G	2	12	446×366 / 17.6X14.4	EDA8135
ON-22G	2	12	576×419 / 22.7X16.5	EDA8137
OF/ ON-01E	2	10	366×316 / 14.4X12.4	EDA8136
OF/ ON-11E	2	14	446×366 / 17.6X14.4	EDA8135
OF/ ON-21E	2	15	576×419 / 22.7X16.5	EDA8137
OF-300G	2	17	708 x 608 / 27.9 x 23.9	RTD1196
OF-450G	3	26	708 x 608 / 27.9 x 23.9	RTD1196
OF-750G	3	35	708 x 808 / 27.9 x 31.8	RTD1197
OF-300H	2	17	708 x 608 / 27.9 x 23.9	RTD1196
OF-450H	3	26	708 x 608 / 27.9 x 23.9	RTD1196
OF-750H	3	35	708 x 808 / 27.9 x 31.8	RTD1197

Perforated shelf

Stainless steel shelf system is removed easily without using tools for easy cleaning.

Models	Description		Cat. No.
Models	Maximum	W×L(mm/inch)	Cat. No.
OF-02G	8	366×316 / 14.4X12.4	AAA12531
OF-12G	12	446×366 / 17.6X14.4	AAA12532
OF-22G	14	516×416 / 20.3X16.4	AAA12533
ON-02G	8	366×316 / 14.4X12.4	AAA12531
ON-12G	12	446×366 / 17.6X14.4	AAA12532
ON-22G	12	576×419 / 22.7X16.5	AAA12535
OF/ ON-01E	10	365×316 / 14.4X12.4	AAA12531
OF/ ON-11E	14	445×366 / 17.6X14.4	AAA12532
OF/ ON-21E	15	575×419 / 22.7X16.5	AAA12535
OF-300G	17	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-450G	26	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-750G	35	708 x 808 / 27.9 x 31.8	AAA80604-3
OF-300H	17	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-450H	26	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-750H	35	708 x 808 / 27.9 x 31.8	AAA80604-3

Recorders

Easy recognizable digital recorders for efficient temperature indicating.

Models	Description	Cat. No.
OF -300, 450, 750 G/W	Recorder (6 Point)	AAA8T500
OF -300, 450, 750 G/W	Recorder (Thermal Line type)	AAAE1503

Tempered viewing window

Optimized sample monitoring with threefold, tempered safety glass window. (Only for OF-G, ON-G series)

Models	Description	Cat. No.
Models	Thickness/ W×L(mm/inch)	Cat. No.
OF/ ON-02G	5/ 150×280 / 0.2/ 5.9x11.0	AAA12611
OF/ ON-12G, 22G	5/ 150×380 / 0.2/ 5.9x15.0	AAA12612

Fan-speed adjuster

Adjustable inner air circulating speed, which protects spreading out powder samples. (Only for OF-G series)

Models	Description	Cat. No.
OF-02G, 12G, 22G	Analog dial control	AAA12701
