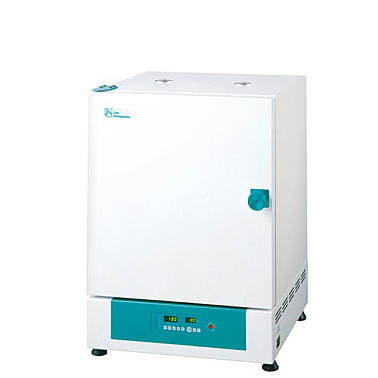

JEIOTECH ON-01E Forced Convection Ovens (52L, 220 ℃)

Name: JEIOTECH ON-01E Forced Convection Ovens (52L, 220 ℃)
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelON-01E

P/NAAH15015K

OriginKorea

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Microprocessor PID control
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
Forced air
Chamber volume: 52 L
Temperature Range: Amb. +10 to 220 ℃
Temperature Fluctuation: ±0.3 ℃ at 100℃
Temperature Variation: ±6.5 ℃ at 100℃
Dimension Interior: 375×370×370mm
Dimension Exterior: 530×535×737mm
Weight: 34 kg
Power: 230V-50/60Hz/4.3A
Include: 2 Wire Shelves

Download Cataloge Jeiotech

Operational Features

Microprocessor PID control
Simple calibration and auto-tuning function
Temperature control: 15°C above ambient to 220°C
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive and easy-to-operate control panel with bright LED display (1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
Corrosion-resistant incoloy sheath heating element and stainless steel interior
Adjustable dual slide vents for controlling inner vapor circulation (diameter: 38mm/1.5”)

Model		ON-01E	ON-11E	ON-21E
Chamber volume (L/cu ft)		52 / 1.8	100 / 3.5	150 / 5.3
Temperature	Range(℃/℉)	Amb. +15 to 220 / Amb. +27 to 428
	Fluctuation¹⁾(±℃/℉)at 100℃	0.3 / 0.54	0.4 / 0.72	0.5 / 0.9
	Variation¹⁾(±℃/℉)at 100℃	6.5 / 11.7	4.1 / 7.38	7.3 / 13.14
Dimension	Interior dimensions (W x D x H) (mm/inch)	375×370×370 / 14.8x14.6x14.6	455×430×510 / 18.0x17.0x20.0	585×460×555 / 23.0x18.1x21.9
	Exterior dimensions (W x D x H) (mm/inch)	530×535×737 / 20.9x21.1x29.0	610×595×877 / 24.0x23.4x34.5	740×625×922 / 29.1x24.6x36.3
	Net weight(Kg/lbs)	34 / 75	46 / 101.4	59 / 130
Electrical Requirements (230V)		50/60Hz, 4.3A	50/60Hz, 6.0A	50/60Hz, 7.4A
Cat. No.		AAH15015K	AAH15025K	AAH15035K
Electrical Requirements (120V)		50/60Hz, 6.7A	50/60Hz, 8.3A	50/60Hz, 10.0A
Cat. No.		AAH15016U	AAH15026U	AAH15036U

Option

Wire shelf

Stainless steel and electro polished shelf system is removed easily without using tools for easy cleaning.

Models	Description			Cat. No.
Models	Included	Maximum	W×L(mm/inch)	Cat. No.
OF-02G	2	8	366×316 / 14.4X12.4	EDA8136
OF-12G	2	12	446×366 / 17.6X14.4	EDA8135
OF-22G	2	14	516×416 / 20.3X16.4	EDA8134
ON-02G	2	8	366×316 / 14.4X12.4	EDA8136
ON-12G	2	12	446×366 / 17.6X14.4	EDA8135
ON-22G	2	12	576×419 / 22.7X16.5	EDA8137
OF/ ON-01E	2	10	366×316 / 14.4X12.4	EDA8136
OF/ ON-11E	2	14	446×366 / 17.6X14.4	EDA8135
OF/ ON-21E	2	15	576×419 / 22.7X16.5	EDA8137
OF-300G	2	17	708 x 608 / 27.9 x 23.9	RTD1196
OF-450G	3	26	708 x 608 / 27.9 x 23.9	RTD1196
OF-750G	3	35	708 x 808 / 27.9 x 31.8	RTD1197
OF-300H	2	17	708 x 608 / 27.9 x 23.9	RTD1196
OF-450H	3	26	708 x 608 / 27.9 x 23.9	RTD1196
OF-750H	3	35	708 x 808 / 27.9 x 31.8	RTD1197

Perforated shelf

Stainless steel shelf system is removed easily without using tools for easy cleaning.

Models	Description		Cat. No.
Models	Maximum	W×L(mm/inch)	Cat. No.
OF-02G	8	366×316 / 14.4X12.4	AAA12531
OF-12G	12	446×366 / 17.6X14.4	AAA12532
OF-22G	14	516×416 / 20.3X16.4	AAA12533
ON-02G	8	366×316 / 14.4X12.4	AAA12531
ON-12G	12	446×366 / 17.6X14.4	AAA12532
ON-22G	12	576×419 / 22.7X16.5	AAA12535
OF/ ON-01E	10	365×316 / 14.4X12.4	AAA12531
OF/ ON-11E	14	445×366 / 17.6X14.4	AAA12532
OF/ ON-21E	15	575×419 / 22.7X16.5	AAA12535
OF-300G	17	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-450G	26	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-750G	35	708 x 808 / 27.9 x 31.8	AAA80604-3
OF-300H	17	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-450H	26	708 x 608 / 27.9 x 23.9	AAA80604-2
OF-750H	35	708 x 808 / 27.9 x 31.8	AAA80604-3

Recorders

Easy recognizable digital recorders for efficient temperature indicating.

Models	Description	Cat. No.
OF -300, 450, 750 G/W	Recorder (6 Point)	AAA8T500
OF -300, 450, 750 G/W	Recorder (Thermal Line type)	AAAE1503
