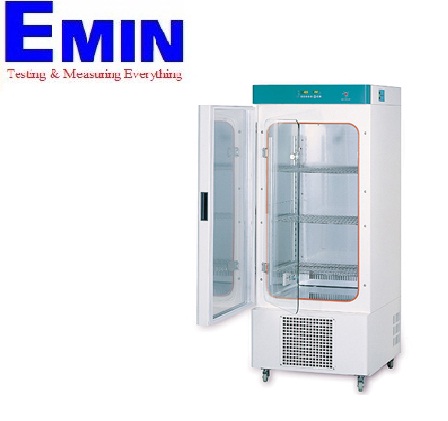

Jeiotech IL-11 Low Temp. Incubators (Air-jacketed Models)

Name: Jeiotech IL-11 Low Temp. Incubators (Air-jacketed Models)
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelIL-11

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Model: IL-11
Manufacturers: Jeiotech
Origin: Korea
warranty: 12 months

Control System Feedback control PID
Temperature Range (℃ / ℉) Amb. 3~60 /
Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
Variation at 37℃ (±℃ / ℉) 0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) 600×500×500 /
Overall (mm / inch) 735×742×1010 /
Net Weight (kg / lbs) 100
Electrical Requirements (230V, 50 / 60Hz) 4.5A
Cat. No. AAH22041K

Operating Features

Temperature control: 0°C to 60°C.
Microprocessor PID control.
Simple calibration and auto-tuning functions.
Digital timer with Delayed ON/OFF function: 1 min to 99 hr 59 min.
High temperature limit setting and open door alarm.
Convenient preset function for 3 most commonly used temperature settings.
Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
Adjustable three-step fan speed with defrosting time and period control.
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad.
RS-232 interface.

Constructional Features

Forced air convection using an optimal cross flow fan for chamber temperature uniformity.
Large chamber volume: maximum 244L. (8.6 cu ft)
Built-in electrical outlet with a safety cover inside the chamber.
Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
Detachable shelves and round-cornered chamber interior allowing easy cleaning.

Model		IL-11		IL-21
Chamber Volume (L / cu ft)		150 / 5.32		244 / 8.6
Refrigerator (Hp)		1 / 8 HBP		1 / 6 HBP
Temperature	Range (℃ / ℉)	0 to 60 / 32 to 140
	Fluctuation ¹⁾ at 25℃ (±℃ / ℉)	0.1 / 0.18
	Variation ¹⁾ at 25℃ (±℃ / ℉)	0.5 / 0.9		0.4 / 0.72
Dimension(W×D×H)	Interior (mm / inch)	600×500×500 / 24×20×20		500×520×940 / 20×20.5×37
	Exterior (mm / inch)	735×742×1010 / 28.9×29×40		635×740×1630 / 25×29×64
	Net Weight (Kg / lbs)	100 / 220		135 / 297
Electrical Requirements (230V)		60Hz, 4.5A	50Hz, 4.5A	60Hz, 6.4A	50Hz, 6.4A
Cat. No.		AAH22041K	AAH22042K	AAH22051K	AAH22052K
Electrical Requirements (120V)		60Hz, 8.3A		60Hz, 10.6A
Cat. No.		AAH22046U		AAH22056U

1) Technical data according to DIN 12880.
