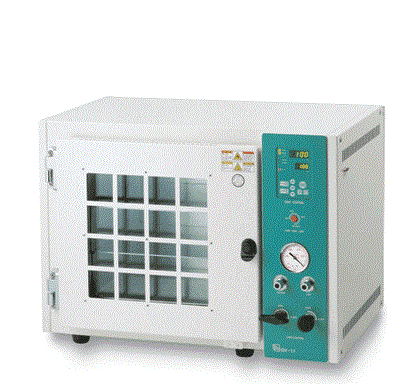

Microprocessor PID control
Digital timer: 1 min to 99 hr 59 min, delayed ON / OFF.
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
Over-temperature limiter / Door opening alarm.
Convenient presetting function for 3 most commonly used temperature settings
RS-232 interface
Chamber volume: 65L
Vacuum range: 0 ~ 0.1MPa, Analog
Temperature Range: Amb. +5 to 250 ℃
Temperature Fluctuation: ±0.3 ℃ at 100℃
Temperature Variation: ±3.7 ℃ at 100℃
Dimension Interior: 402×405×402 mm
Dimension Exterior: 780×557×595 mm
Weight: 103 kg
Power: 230V-50/60Hz/ 6.1A
Include: 3 Plate Shelve, 3.0mm (0.12˝)
Option:
- Vacuum Pump TRP-6
- Oil Mist Traps TMF -12
- Cold Trap Baths CTB-10
Operating features
• From +5℃ above room temperature to 250℃
• Vacuum range: 0 to 0.1MPa, analog gauge. (analog vacuum gauge)
• Microprocess PID control / Auto-tuning/ Calibration.
• Digital timer: 1 min to 99 hr 59 min, delayed ON / OFF.
• Over-temperature limiter / Door opening alarm.
• Conveniently preset 3 most commonly used temperature settings without auto-tuning.
• Digital LED display (1℃ resolution) touch keypads
• RS-232 interface available
Constructional features
• Separate vacuum and vent ports: the narrow vent line controls the vacuum rate and inert.
(atmospheres slowly / the wider vacuum line to produce a vacuum quickly)
• Tight gasket seal and push-button latch.
• Block type heater distributes heat evenly from the chamber exterior to the anodized.
• Heat tempered spring load glass door gives a tight vacuum seal and convenient for continuous monitoring
of samples.
• Moderately sized oven with user-friendly all-in-one control panel.
• Upon request available with Viton(Fluorine rubber) door gasket.(optional)
|
Model |
OV-11 |
OV-12 |
|
|
Chamber volume (L/cu ft) |
28 / 1.0 |
65 / 2.3 |
|
|
Vacuum range |
0 ~ 0.1MPa, Analog |
||
|
Nozzle size (mm/inch) |
Vacuum Ø10 / 0.4, Vent Ø10 / 0.4 |
||
|
Temperature |
Range(℃/℉) |
Amb.+5 to 250 / Amb.+9 to 482 |
|
|
Fluctuation1)(±℃/℉)at 100℃ |
0.1 / 0.18 |
0.3 /0.54 |
|
|
Variation1)(±℃/℉)at 100℃ |
3.7 / 6.66 |
||
|
Dimension |
Interior dimensions |
302×305×302 |
402×405×402 |
|
Exterior dimensions |
680×453×495 |
780×557×595 |
|
|
Net weight(Kg/lbs) |
63 / 139 |
103 / 227 |
|
|
Electrical Requirements (230V) |
50/60Hz, 5.3A |
50/60Hz, 6.1A |
|
|
Cat. No. |
AAH13115K |
AAH13125K |
|
|
Electrical Requirements (120V) |
50/60Hz, 10A |
50/60Hz, 11.7A |
|
|
Cat. No. |
AAH13116U |
AAH13126U |
|
Option
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
| ※ In addition to providing standard accessories, we will manufacture customized accessories to meet your specific requirements. Contact us for details. |
